How to Copy and Split Tiles from an Imagery Mosaic

Updated
These tools are included in the following plans: Pro, Premium

Introduction

Two very useful tools that can help you streamline your Imagery Mosaic Tiles are "Copy" and "Split", and are introduced in Plex-Earth 2026. These tools are very valuable, especially for dealing with large scale Imagery Mosaics, and can help you manage them in the best way possible!

To use these tools, you will have to create an Imagery Mosaic first. Then, you can see how you can use the tools by following the processes below:

Tool 1: Copy Imagery Mosaic Tiles

Tool 2: Split Imagery Mosaic Tiles

Conclusion

Tool 1: Copy Imagery Mosaic Tiles

With "Copy" Imagery Mosaic Tiles, you can copy selected tiles from an existing mosaic and duplicate them to a newly created one. To do this, you can follow this procedure:

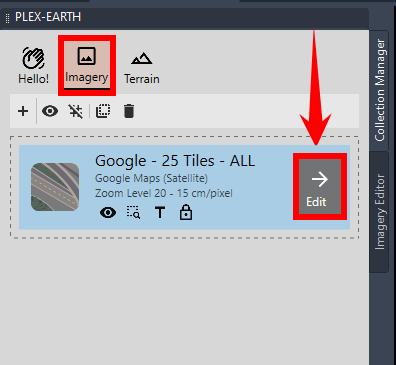

  • Go to the Collection Manager, locate the Mosaic you want to copy tiles from, and click on "Edit".

Locate Mosaic.png

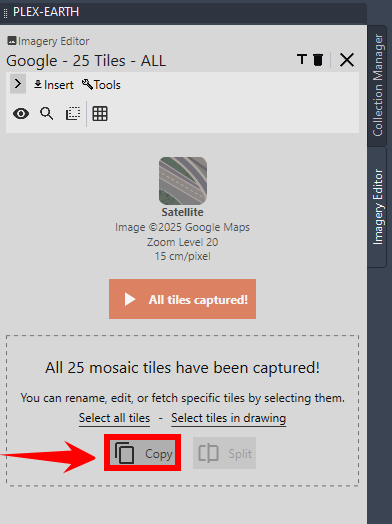

  • Then, the following menu will appear, where you will see the button "Copy".

Button Copy.png

  • Select the preferred tiles you want to copy to another Mosaic.

Select Tiles to Copy.png

  • The selected tiles will appear with a red color.

Red Selected Tiles.png

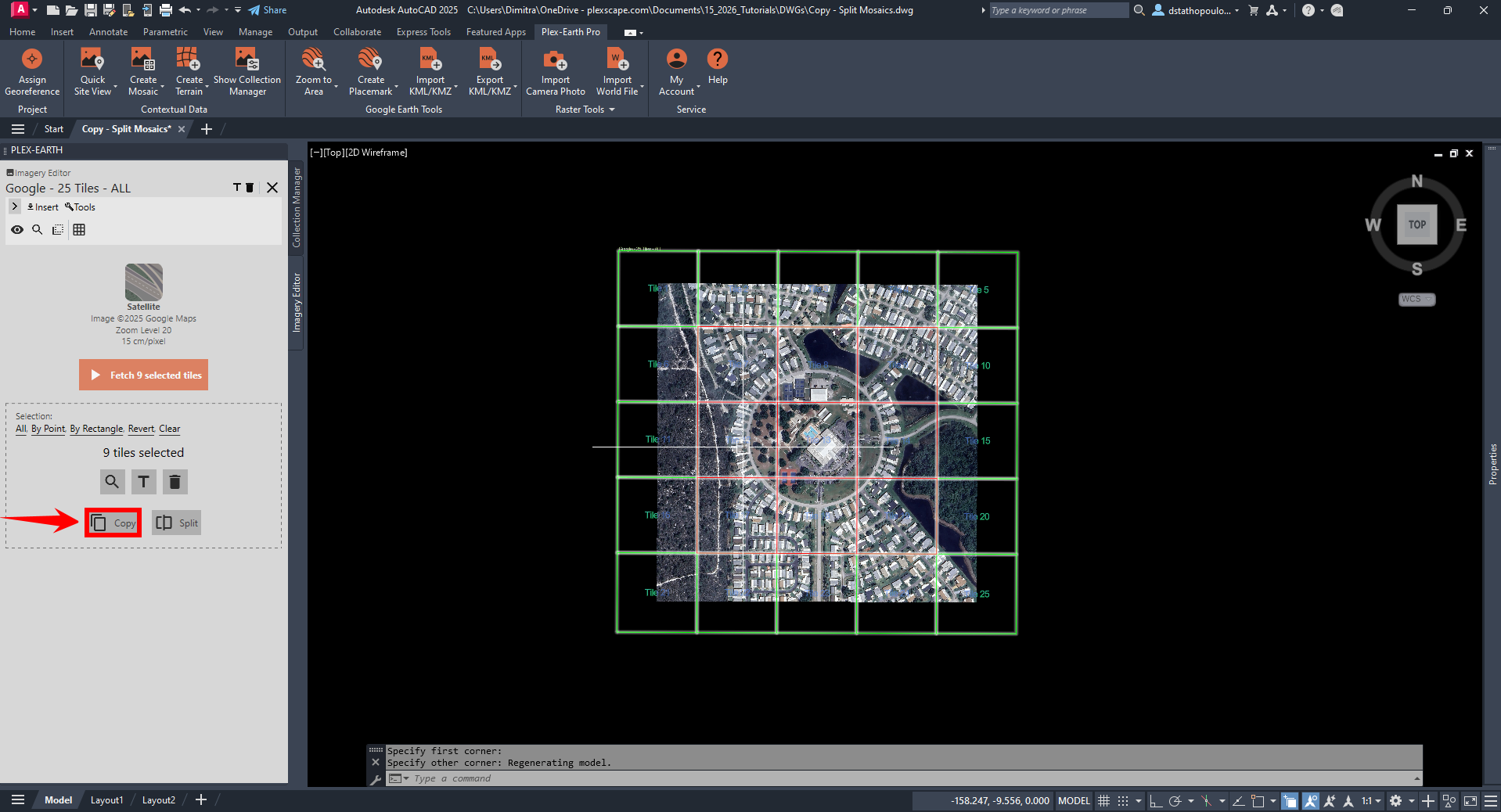

  • After you select the tiles, click on "Copy".

Click on Copy.png

📝 Note: In case you want to copy the whole Mosaic, click directly on "Copy", without selecting any tiles first.

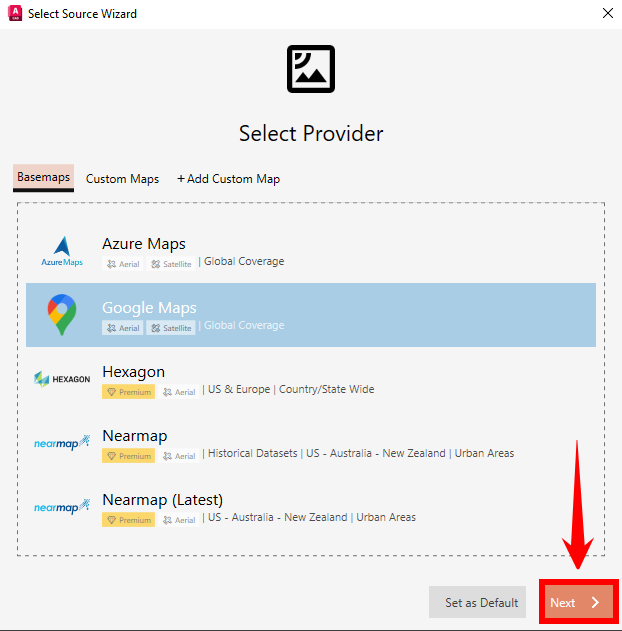

  • Then, you will be prompted to select the Provider. Select it and click "Next".

Select Provider - Copy.png

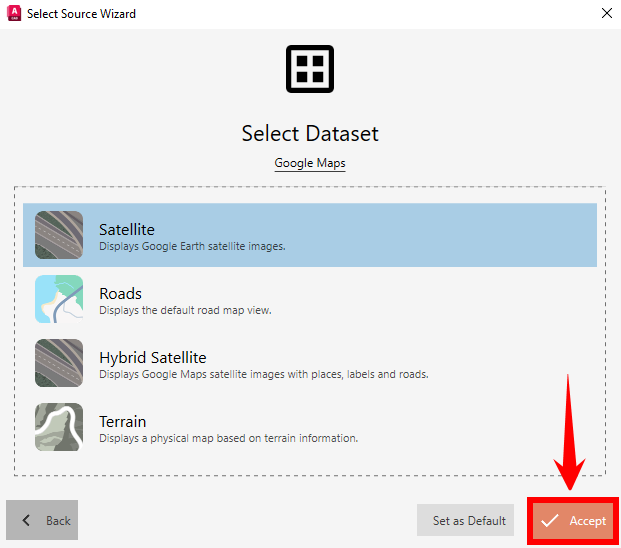

  • Then, select your preferred Dataset, and click "Accept".

Select Dataset - Copy.png

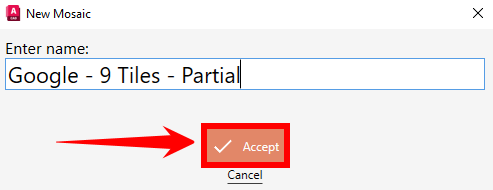

  • Then, name your new Mosaic, and click "Accept".

Name of Mosaic - Copy.png

  • Then, you will be asked to choose whether you prefer to fetch your copied tiles now or not.

Fetch images or No - Copy.png

  • Your new copied Mosaic is ready.

New Copied Mosaic - Copy.png

Tool 2: Split Imagery Mosaic Tiles

With "Split" Imagery Mosaic Tiles, you can split selected tiles from an existing mosaic and move them to a newly created one. To do this, you can follow this procedure:

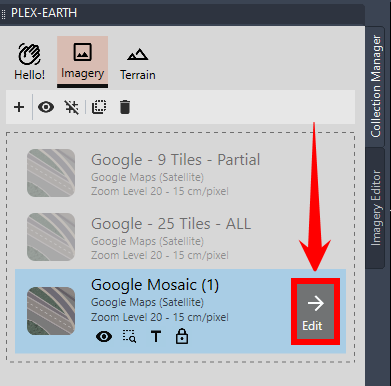

  • Go to the Collection Manager, locate the Mosaic you want to split, and click on "Edit".

Locate Mosaic - Split.png

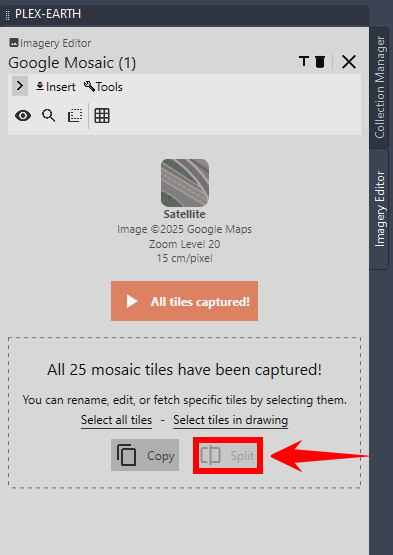

  • Then, the following menu will appear, where you will see the button "Split".

Button Split.png

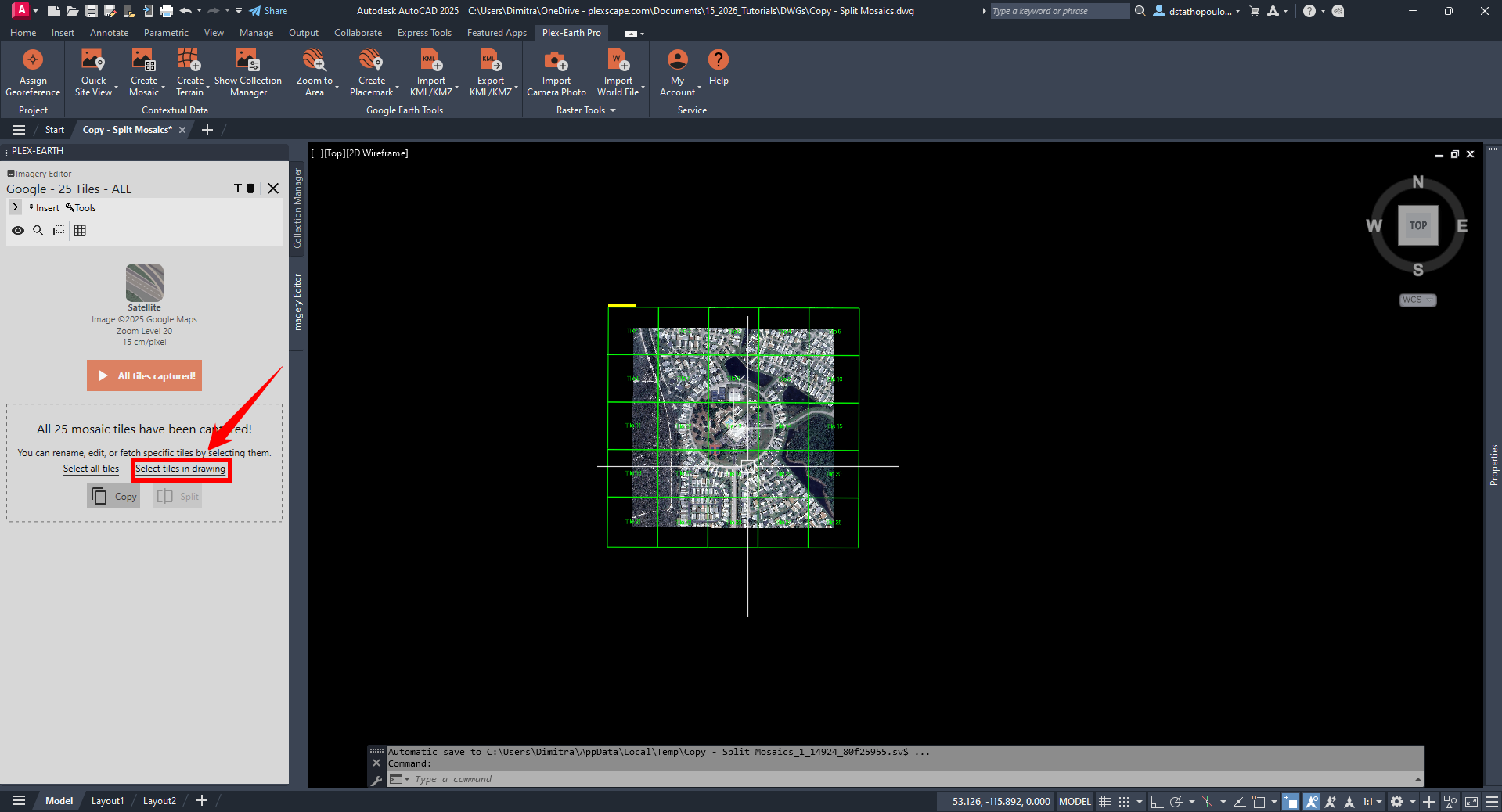

  • Select the preferred tiles you want to split into another Mosaic.

Select Tiles to Split.png

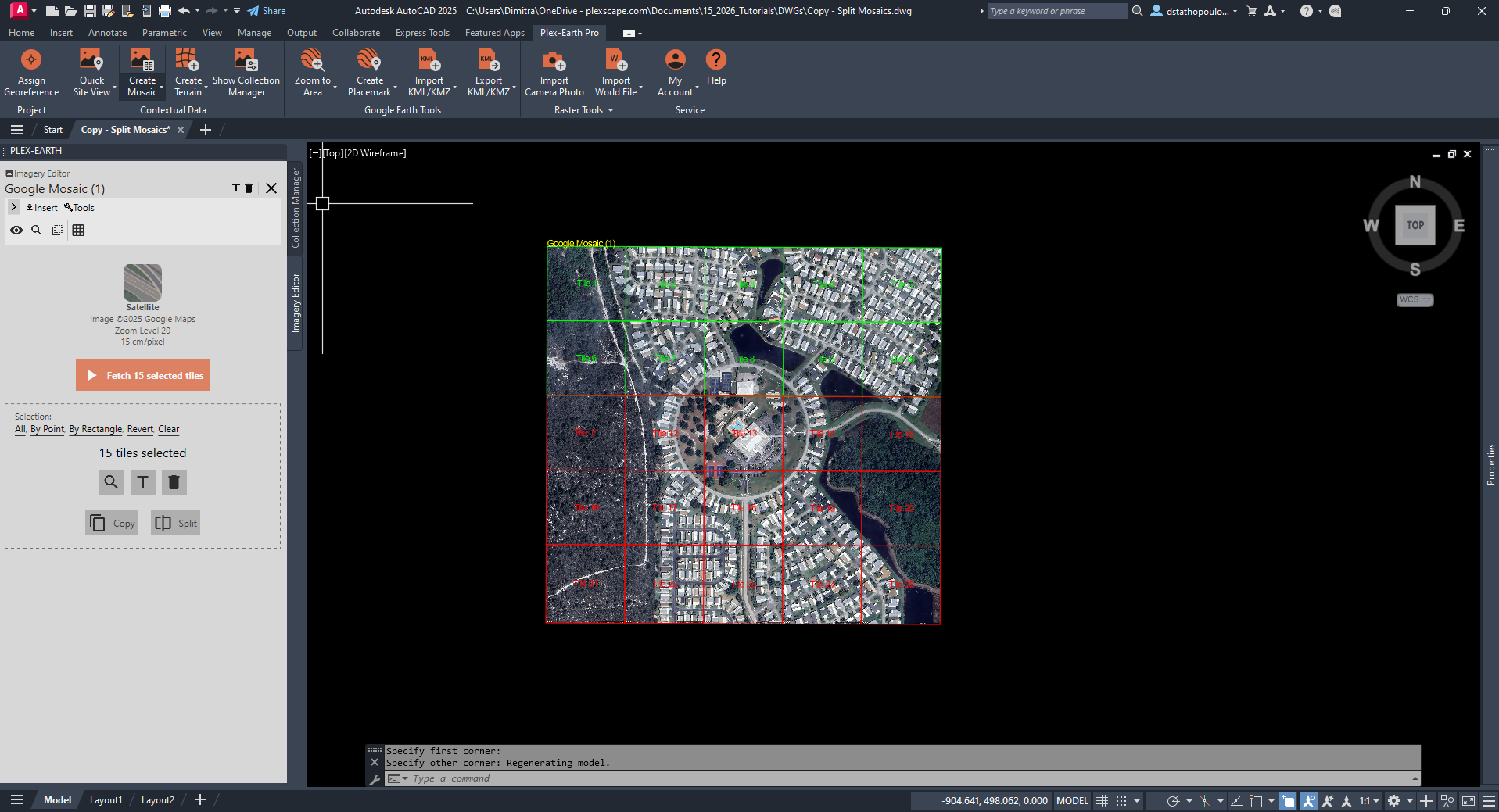

  • The selected tiles will appear with a red color.

Red Selected Tiles - Split.png

  • After you select the tiles, click on "Split".

Click on Split.png

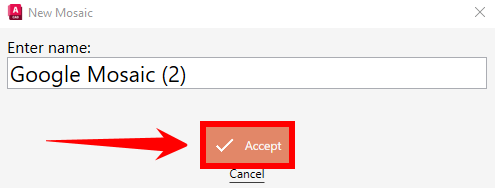

  • Then, name your new Mosaic, and click "Accept".

Name of Mosaic - Split.png

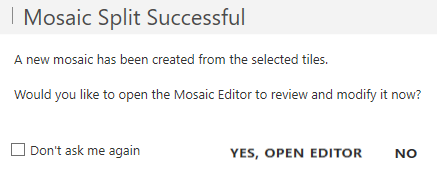

  • After that, you will receive the following message. Choose whether you'd like to open the editor to review and modify the mosaic or not.

Mosaic Split Successful.png

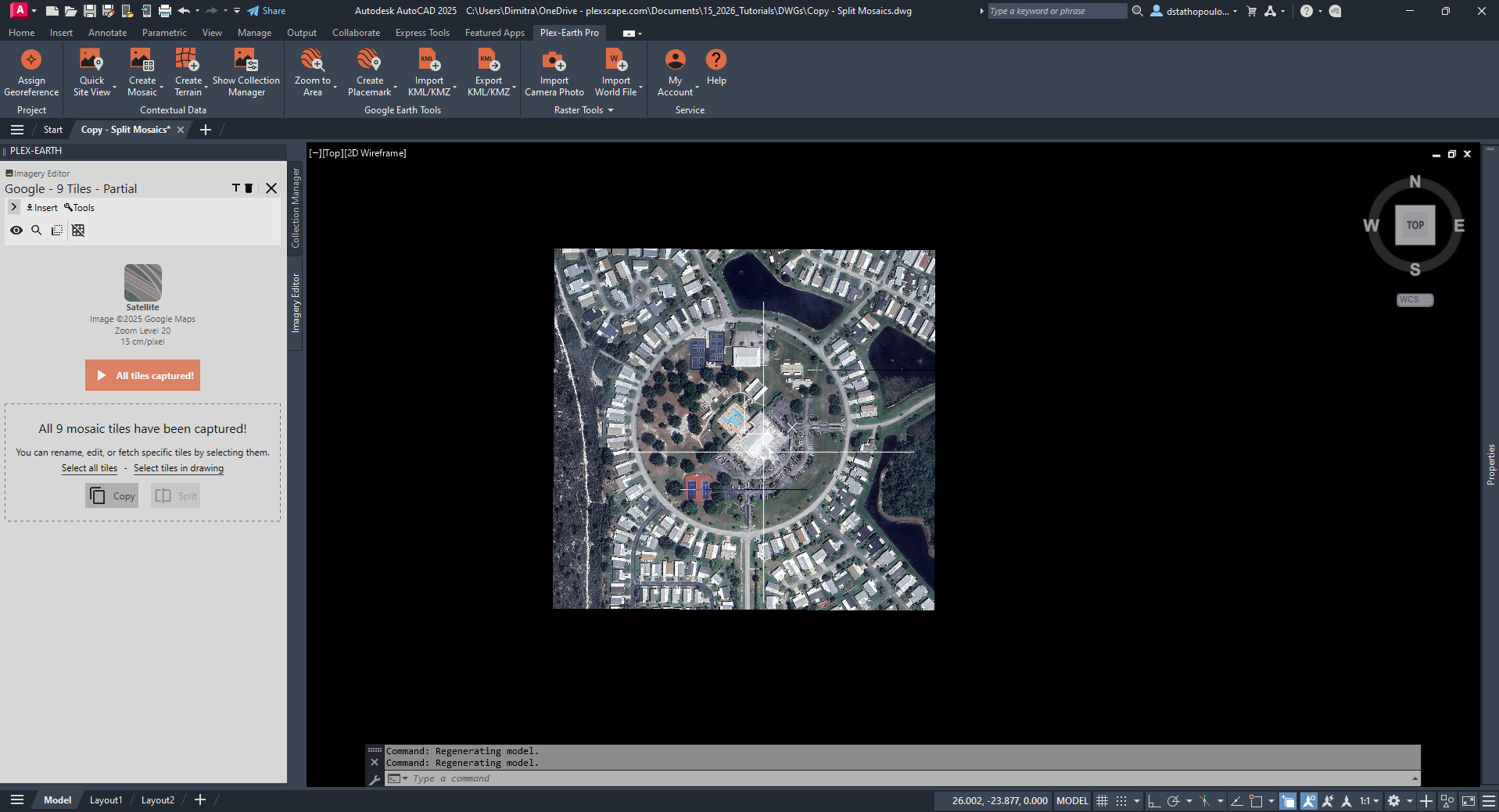

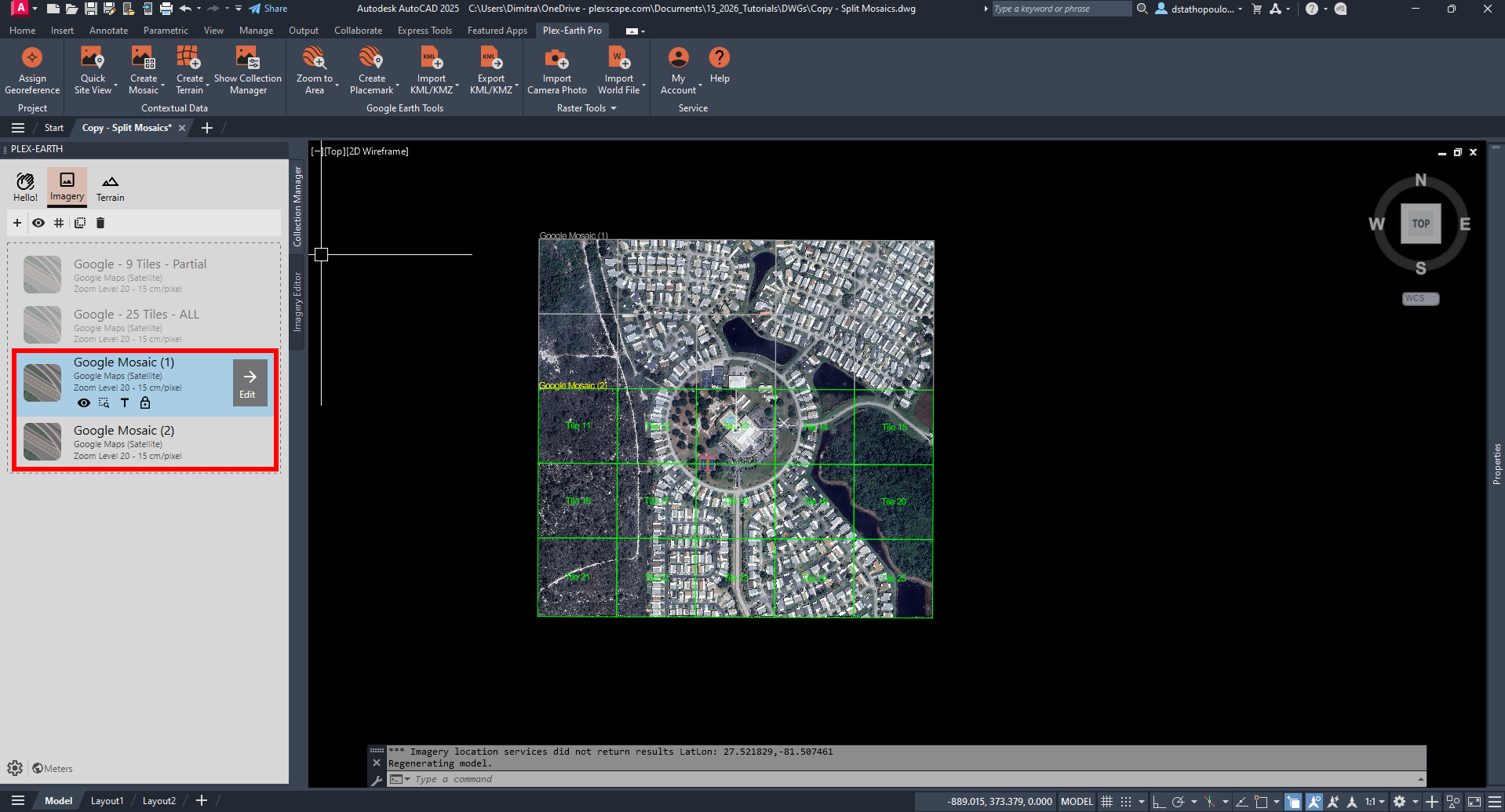

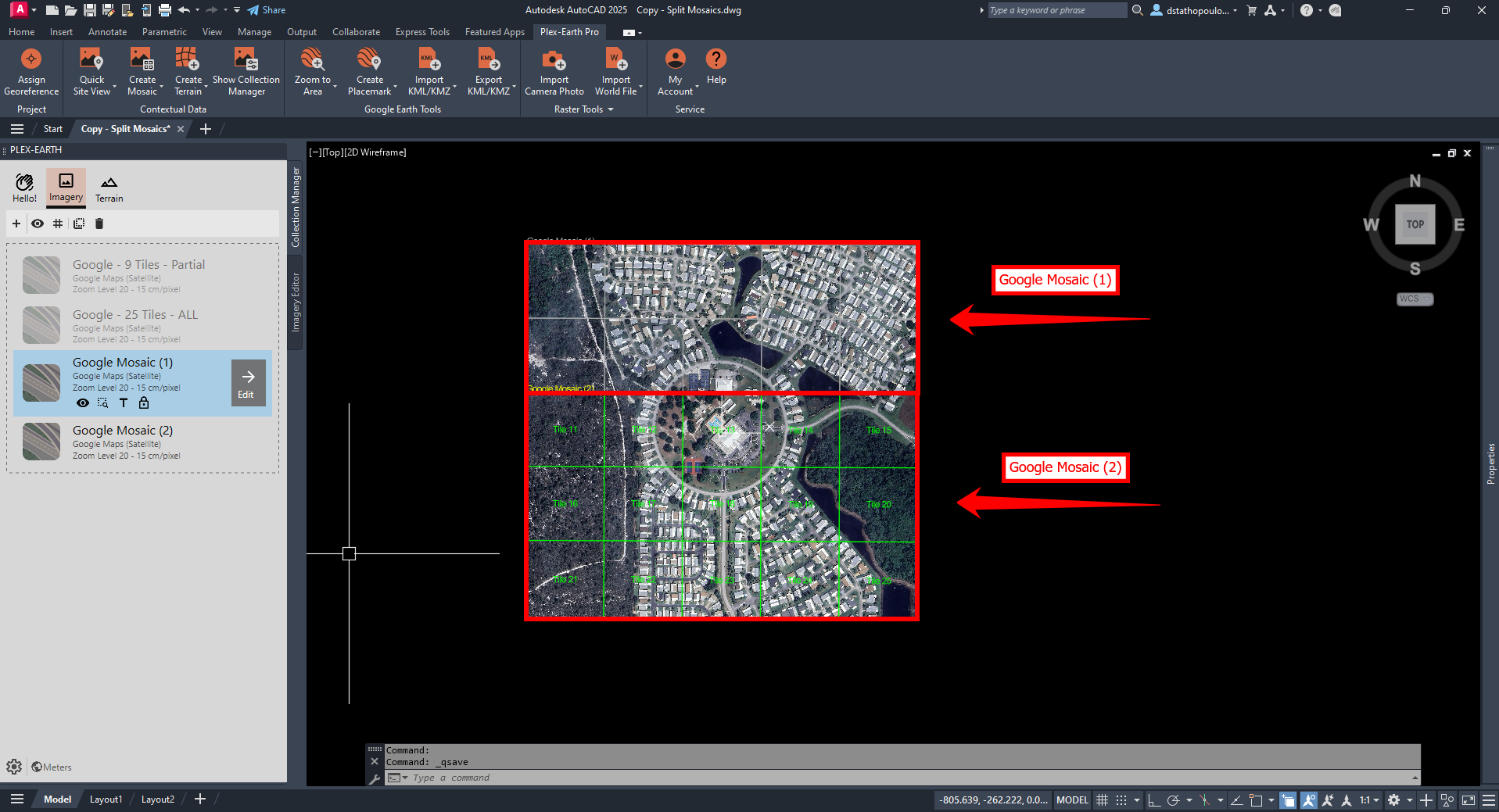

  • The final result is ready! The initial Mosaic is now split! You can see that both from the Collection Manager, and from your drawing space.

2 Mosaics - Split - Collection Manager.png

2 Mosaics - Split - Drawing Space.png

After creating your Mosaics, you can see how you can edit them via this tutorial.

Also, if you want to insert your Plex-Earth Imagery Mosaics as Rasters and save them locally to your Hard Drive, you can use this tutorial.

📝 Note: Both the "Copy" and "Split" tools can also work without having fetched the tiles in the initial Mosaic. Therefore, you have the option to use these tools with unfetched mosaic tiles and then proceed with the fetching procedure. If you don't want to fetch the tiles of a Mosaic right away, you can choose the option "Edit Tile Selection", during the process of creating a Mosaic. Edit Tile Selection.png

Conclusion

Plex-Earth now offers the ability to copy and split your Imagery Mosaics! Also, Plex-Earth offers a great variety of tools, providing users with the ability to handle imagery in any way they want.

We hope that you have found this tutorial about copying and splitting tiles from Imagery Mosaics helpful. Feel free to contact us at support@plexscape.com for any questions you may still have.

Don't have Plex-Earth yet? Install a fully functional 7-day free trial of Plex-Earth now!


Compatibility includes:

AutoCAD, Civil 3D®, AutoCAD Map 3D, AutoCAD Architecture, AutoCAD Electrical, AutoCAD Mechanical, AutoCAD MEP, AutoCAD Plant 3D: 2026 , 2025 , 2024 , 2023 , 2022 , 2021 , 2020
BricsCAD (Pro, Mechanical, BIM, Ultimate): V25 , V24 , V23 , V22 , V21
