Learn how to snap CAD objects to a terrain surface in AutoCAD, Civil 3D, or BricsCAD using Plex-Earth. This tutorial explains how to insert objects into your drawing, import terrain data, and use the Snap Objects tool to automatically place models at the correct elevation based on the terrain surface for improved site visualization and design accuracy.
Introduction
Plex-Earth allows you to snap CAD objects directly onto an imported terrain surface, helping you position models and design elements at the correct elevation. This makes it easier to visualize how structures, equipment, or site features will appear in relation to the terrain of your project area.
Snapping objects to terrain improves project visualization and allows designers to place objects with greater accuracy while understanding how their designs interact with the real-world landscape.
Before You Start
Before snapping objects to the terrain surface, make sure that:
Your drawing is georeferenced
A terrain surface has been imported or created
The object or model you want to place on the terrain exists in the drawing
Imagery can also be imported as a helpful reference when positioning objects within the project area.
Step 1: Insert the object to snap in AutoCAD or BricsCAD

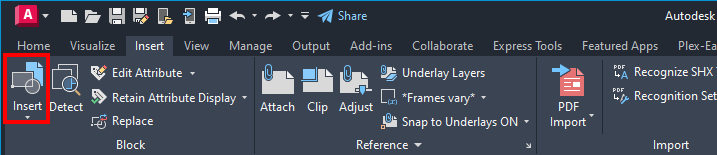

After georeferencing the drawing, go to the Insert tab in AutoCAD or BricsCAD and click Insert to add your model or object to the workspace. If the object already exists in the drawing, this step can be skipped.
During insertion, you may specify the insertion point, scale, and rotation, etc., depending on your project needs.
Step 2: Import Terrain
If you do not already have a terrain surface in the drawing, you will need to import one using Plex-Earth.

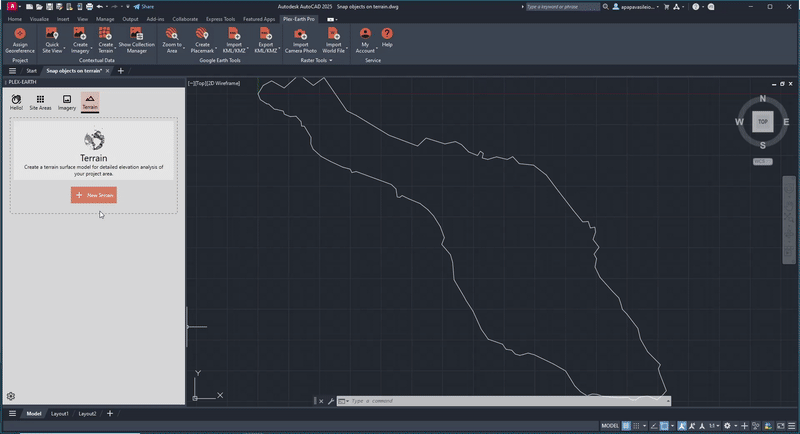

To create a terrain, go to the Plex-Earth ribbon → Create Terrain → specify the cover area → choose the Create Terrain Model option when selecting the surface type.
See the full guide here:Â Create Terrain
Alternatively, you can use other sources such as GeoTIFF files, survey data (TXT/CSV), existing objects, etc. to create a terrain model.
Step 3: Snap Objects
With a terrain surface available, you can now snap objects to the terrain.

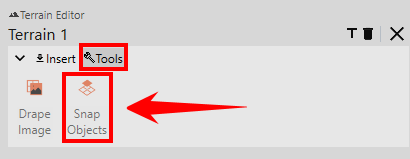

Open the Terrain Editor, then go to Tools → Snap Objects.
You will be prompted to:
Select the objects that you want to snap to the terrain
Specify the anchor point that Plex-Earth will use when positioning the object on the surface
The anchor point determines which part of the object will touch the terrain surface (for example the bottom, top, or origin of the model). Once the anchor point is defined, press Enter to complete the operation.
Plex-Earth will automatically place the selected objects so they follow the elevation of the terrain surface.

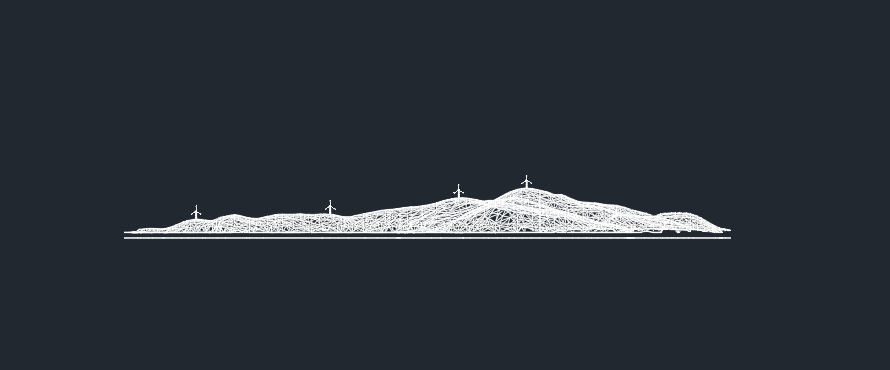

Check example below showing how wind turbines are snapped on an inserted mesh of a terrain model for a small island.

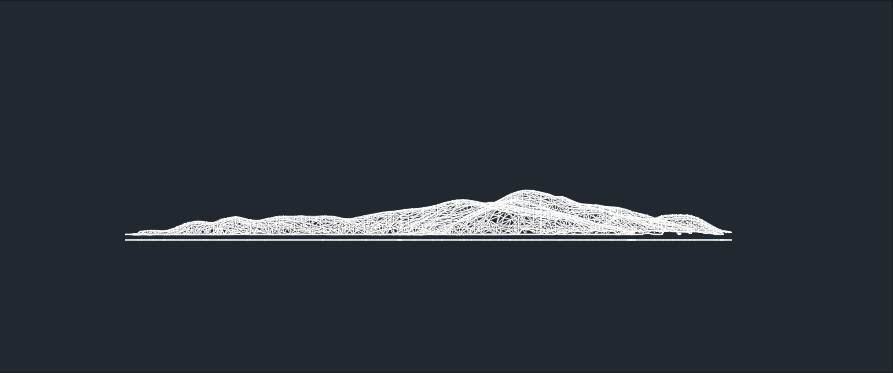

Before

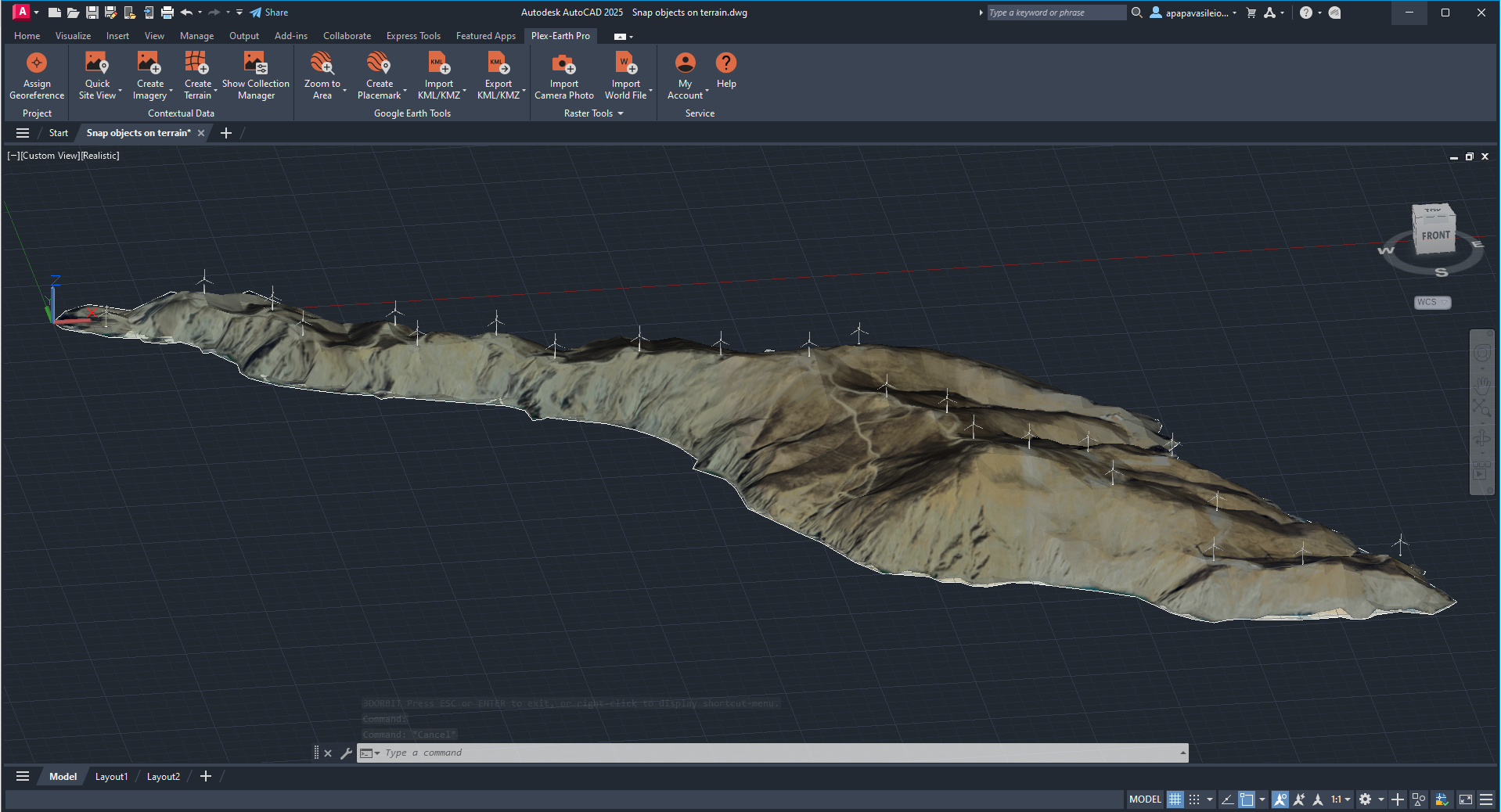

After
Visualization Tips
Insert a Mesh Object
To visualize the snap on a surface properly, insert a mesh.

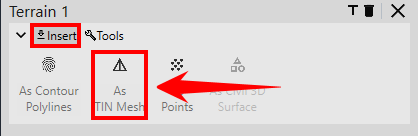

Go to the Terrain Editor palette → Insert → As TIN Mesh.

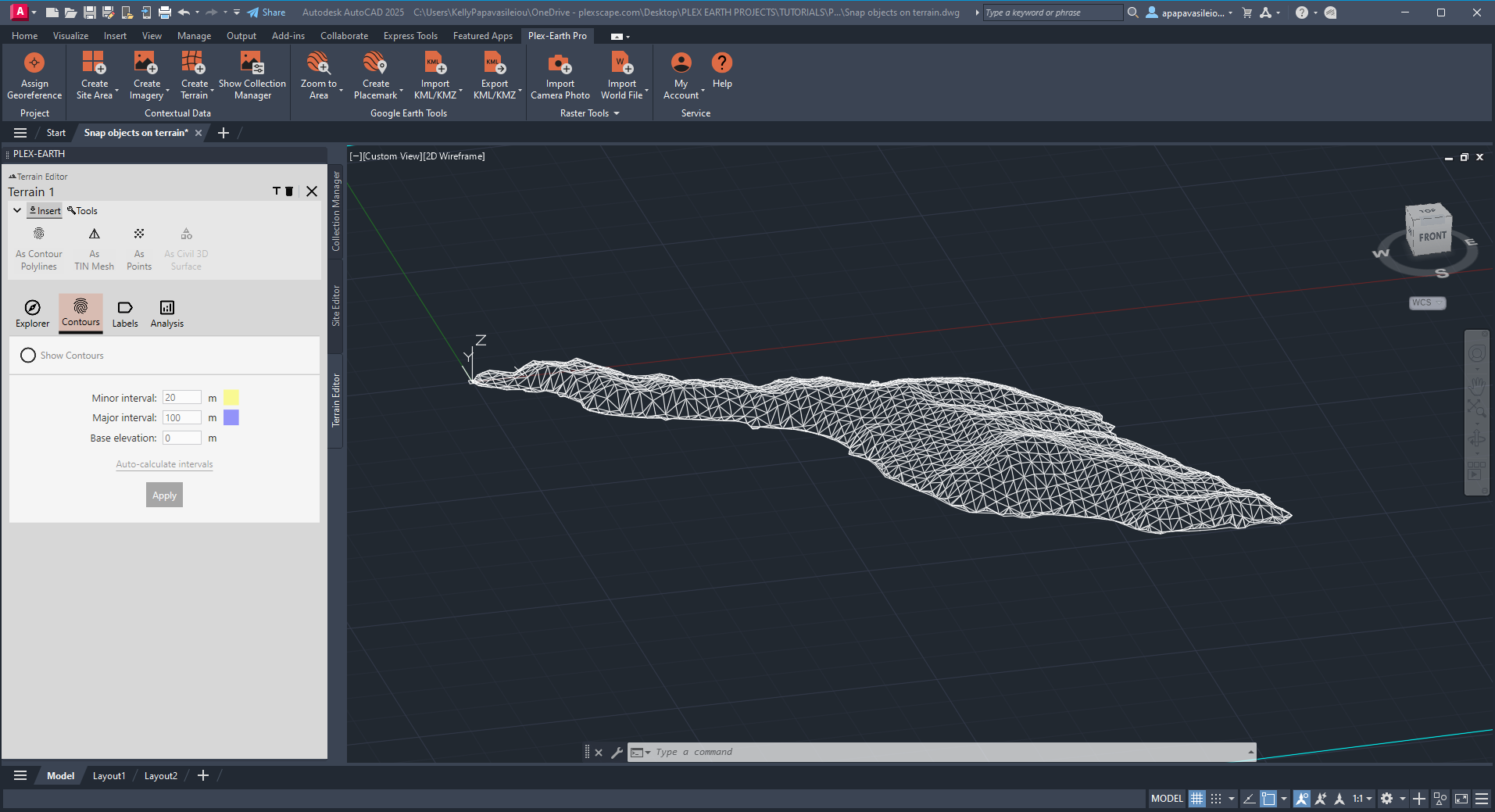

The TIN Mesh will be displayed as below:
Drape Image to Surface
Converting the imagery and terrain into 3D imagery can further improve the level of visualization in AutoCAD. Click here for more details on how to drape imagery onto a terrain surface.
Export to Google Earth

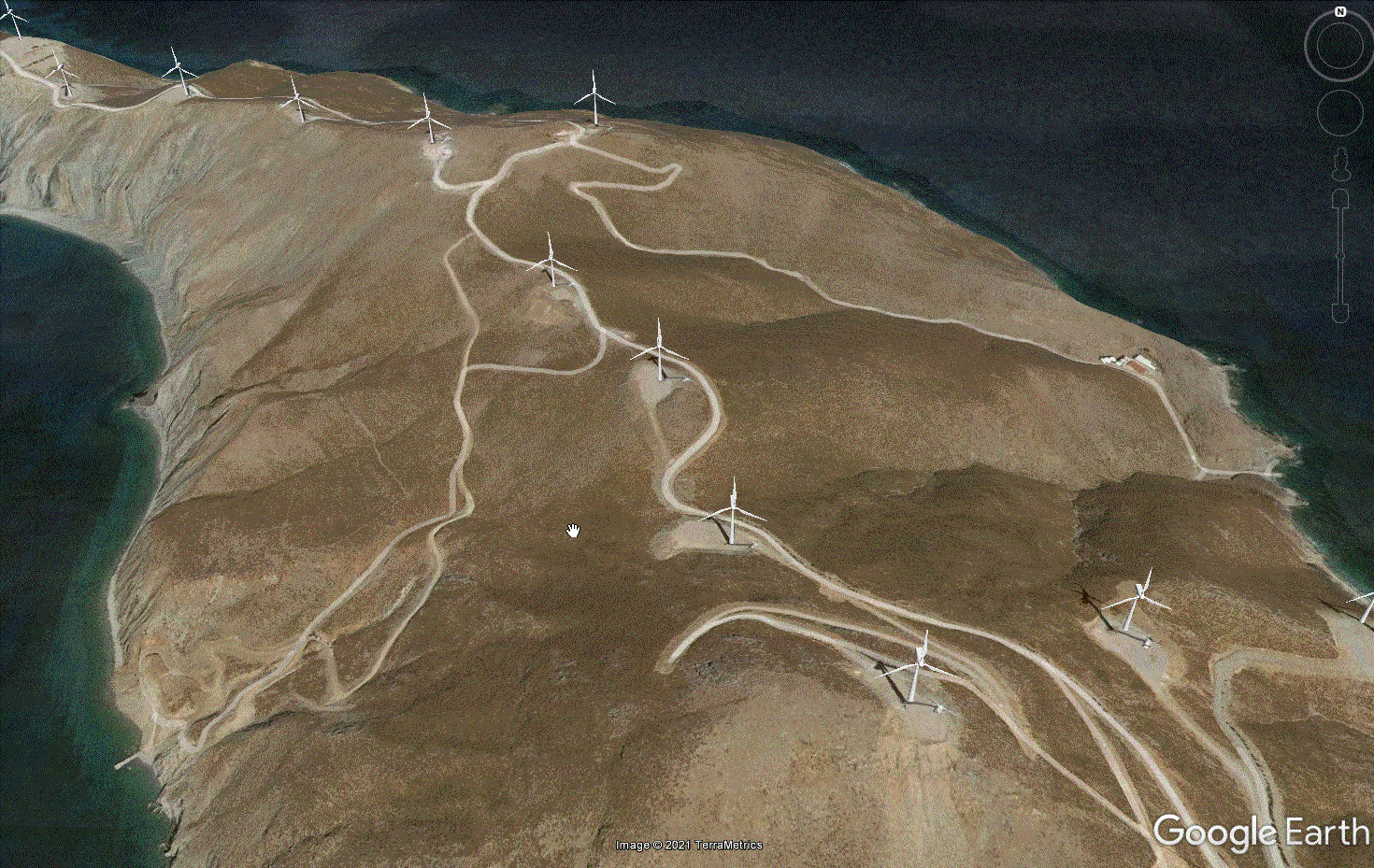

Now that the design is finalized and the models are placed at the desired points, the drawing can also be exported to the real-life space of Google Earth. For more details, click here.
FAQs
What is the anchor point and how do I choose the right one?
The anchor point is the reference point on your object that Plex-Earth uses to determine where it touches the terrain surface. For example, if you select the bottom of a model as the anchor point, the object will be placed so its base sits on the terrain. Choosing the top would place the object so its top is at terrain level, which is rarely what you want. For most models like structures or equipment, the bottom or origin point is the correct choice.
What types of objects can I snap to terrain?
Any CAD object or block that exists in your drawing can be snapped to the terrain surface, including imported models, blocks, and geometry. The object just needs to be present in the drawing before running the Snap Objects command. You can snap multiple objects in a single operation by selecting them all when prompted.
Do I need a dynamic terrain model or will a static mesh work?
The Snap Objects command requires a dynamic Plex-Earth terrain model — it is accessed via the Terrain Editor, which is only available for dynamic terrains. If you only have a static mesh in your drawing, you will need to re-import terrain and select Create Terrain Model as the surface type. See Create Terrain: Import Elevation Data in AutoCAD/Civil 3D.
