Change the Coordinate System of your Drawing to Another

Updated

Have you ever come across a drawing with an applied coordinate system that does not match the one you need to work with? A common mistake is to just change the coordinate system of the drawing. This will not work as every coordinate system applies calculations where every X and Y coordinate of our drawing corresponds to a specific Latitude and Longitude. By just changing the applied coordinate system, we do not change the placement of our drawing objects, so they will be misplaced.

Fortunately, with the help of Plex-Earth tools, there is a trick that can be applied to achieve the desired change in the coordinate system with just a few steps.

Step 1: Check the Applied Coordinate System

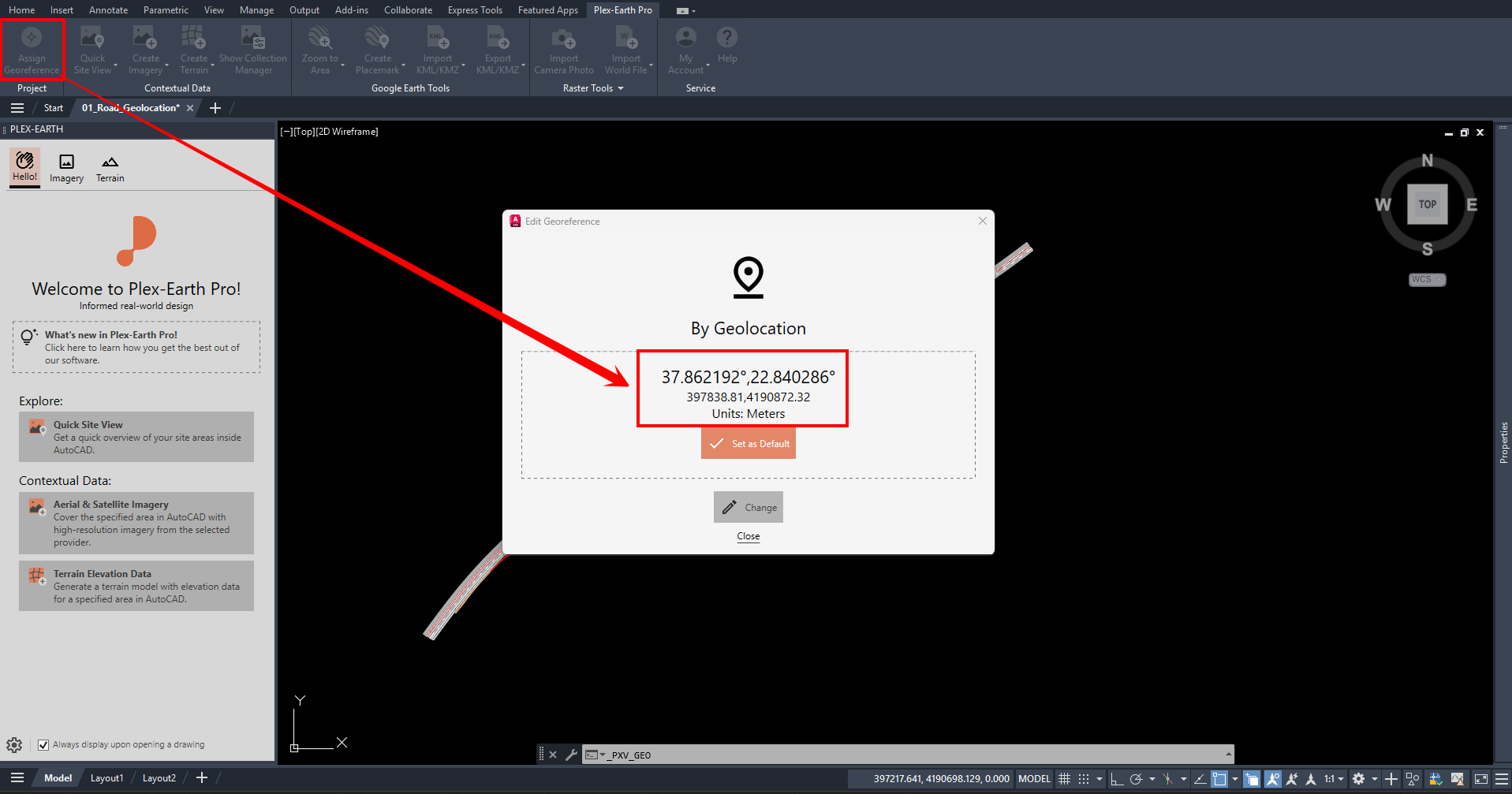

We click on the Georeference button of Plex-Earth to check the applied Coordinate System. As soon as we confirm this is not the one we want to work with, we proceed to the next Step.

Check Georeference System.png

šŸ“ Note: If the drawing is not georeferenced, check how you can apply a Custom Georeference.

Step 2: Export your drawing to Google Earth

We select the drawing objects and then proceed to export them as KML/KMZ to Google Earth.Ā

Export KML_KMZ.png

We save the KML/KMZ folder we created.

Step 3: Create a New Drawing and Apply the Coordinate System You Want

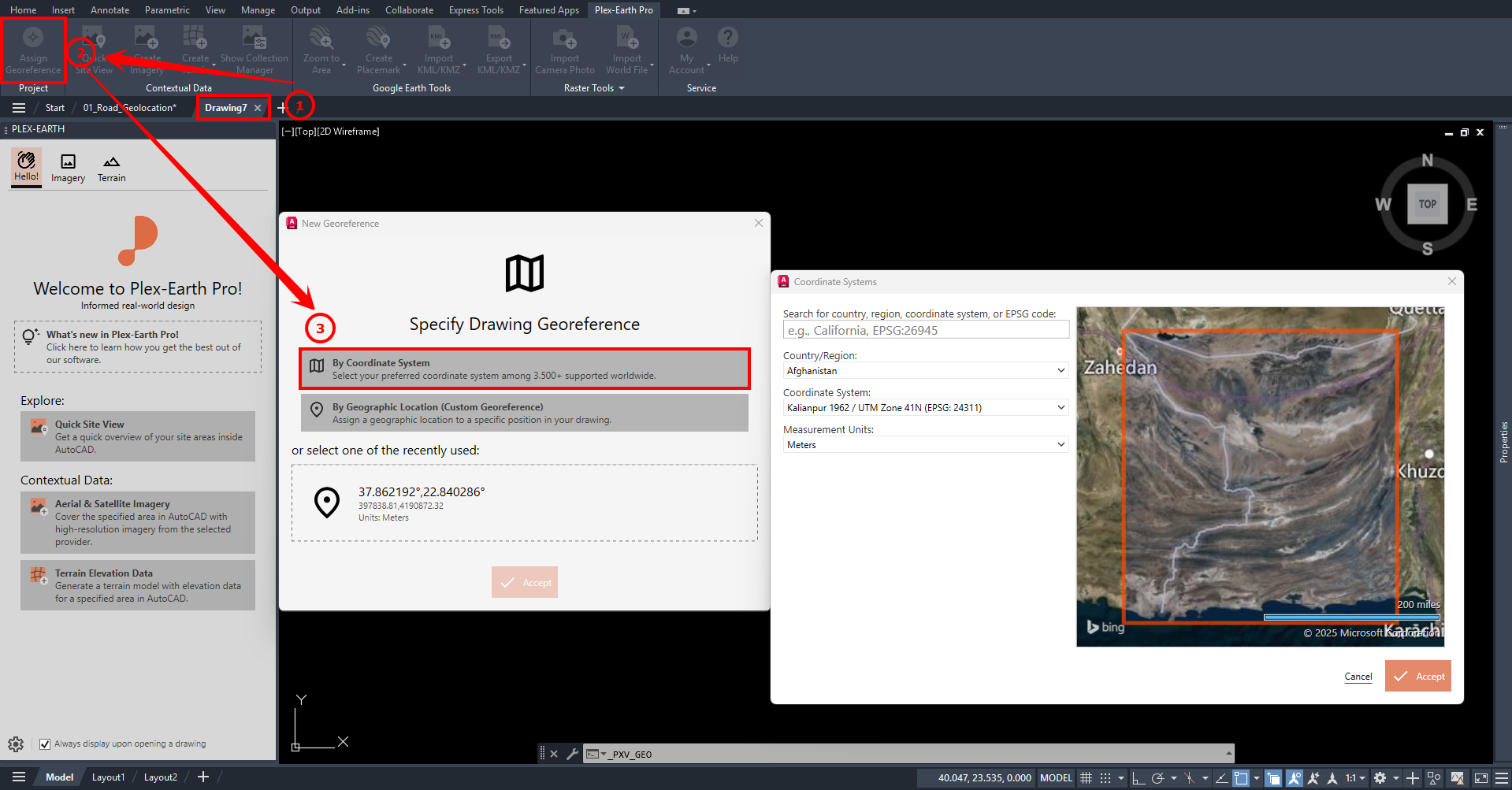

Create a new empty drawing. Select Set Georeference and apply the coordinate system you want. Make sure that the coordinate system applied is suitable for your project area.Ā

Define new Coordinate System.png

More information on Georeference: Choose a Coordinate System.

Step 4: Import your KML to the New Drawing

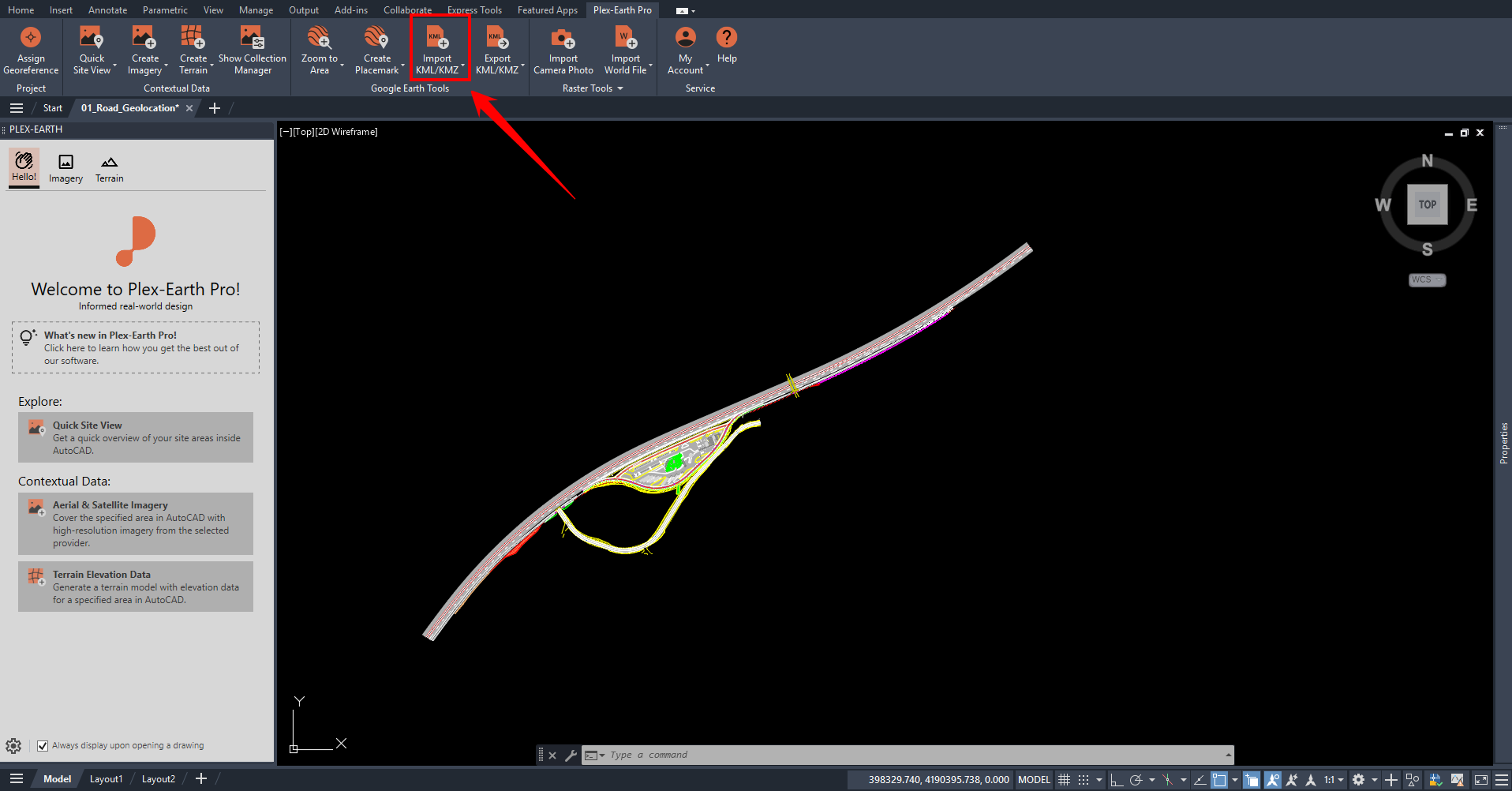

On the drawing created in Step 4, use the Import KML/KMZ command of Plex-Earth, and import the file created in Step 2. Now your drawing is ready with the desired coordinate system applied.

Import KML_KMZ.png

We hope that you have found this tutorial on changing the coordinate system of your drawing to another, helpful. Feel free to contact us atĀ support@plexscape.comĀ for any questions you may still have.

Don't have Plex-Earth yet? Install a fully functional 7-day free trial of Plex-Earth now!


Compatibility includes:

AutoCAD Version: 2025, 2024 , 2023 , 2022 , 2021 , 2020

Civil 3DĀ® Version: 2025, 2024 , 2023 , 2022 , 2021 , 2020

AutoCAD Architecture Version: 2025, 2024 , 2023 , 2022 , 2021 , 2020

BricsCADĀ Pro: V25, V24 , V23 , V22 , V21
