Applies to: any Plex-Earth version Audience: End users
Overview
Some Plex-Earth errors are related to a malfunction in Windows Management Instrumentation (WMI), a core Windows component that provides system management data and operations. Plex-Earth uses WMI during initialization to validate licensing. If WMI is not functioning correctly on your system, Plex-Earth may fail to start or display errors.
⚠️ WMI issues are Windows-level problems that affect the overall performance of your workstation, not just Plex-Earth. We strongly recommend involving your IT/System Administrator when addressing WMI problems.
Some error messages from Plex-Earth are correlated with a malfunction in Windows Management Instrumentation (WMI). Windows Management Instrumentation (WMI) is the infrastructure for management data and operations on Windows-based operating systems. Although this is a Windows issue, you can use the tips below to resolve the issues and ensure that Plex-Earth works properly.
How Do I Know WMI Is the Cause?
WMI issues are not always clearly identified in Plex-Earth error messages. You may encounter:
An empty or blank Plex-Earth ribbon
The following error message on startup:

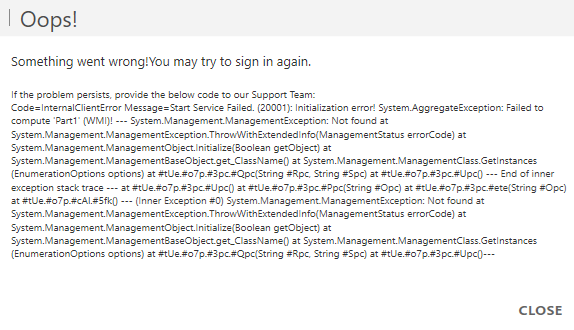

"Code=InternalClientError Message=Start Service Failed. (20001): Initialization error! System.AggregateException: Failed to compute 'Part1' (WMI)!"
Other issues, such as an empty ribbon, can also be caused by installation or connectivity problems. To confirm that WMI is specifically the cause, check WMI directly on your system.
Step 1: Check WMI Functionality

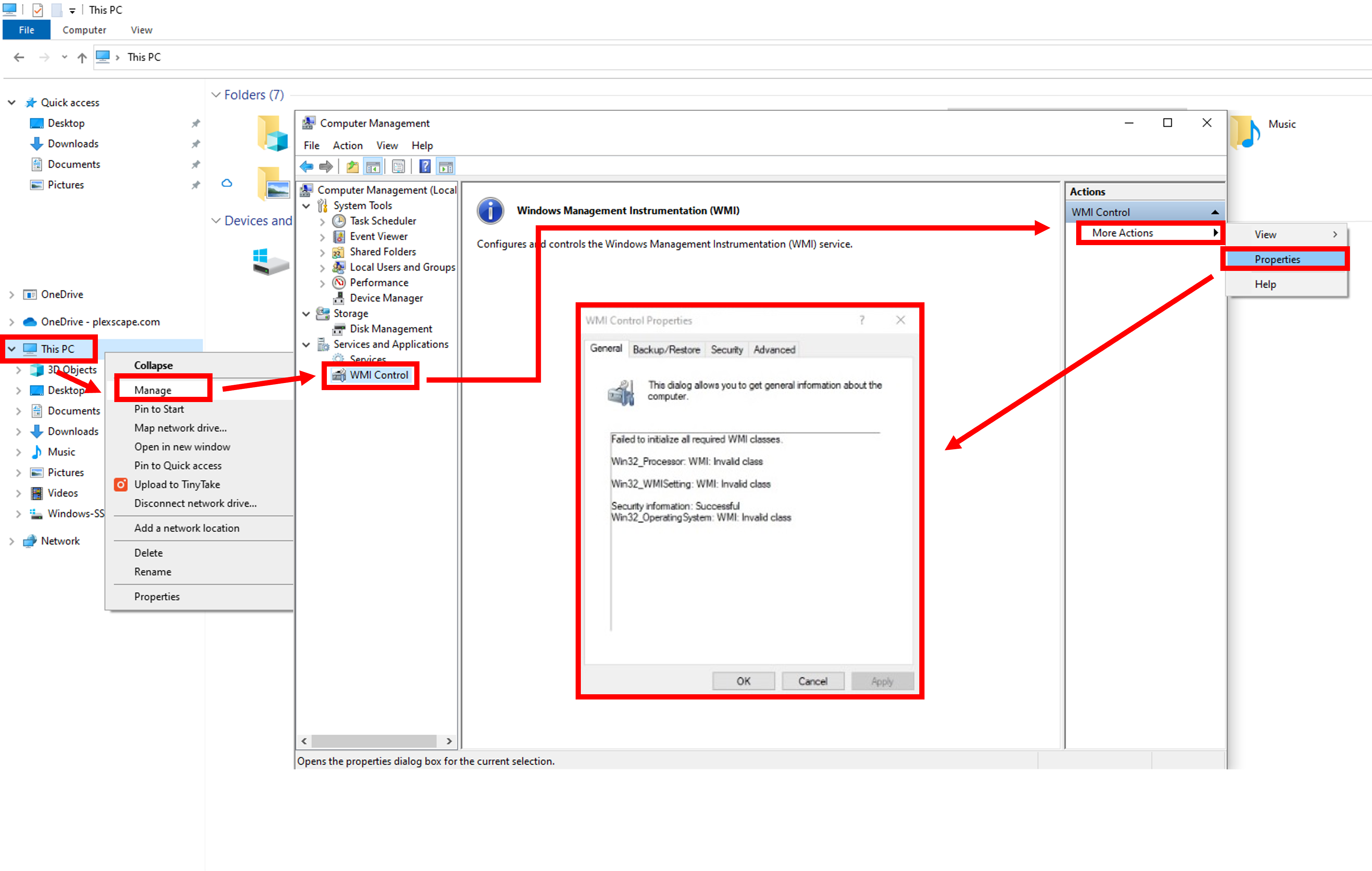

Right-click on This PC on your desktop or in File Explorer
Select Manage
In the Computer Management window, navigate to Services and Applications → WMI Control
Right-click on WMI Control and select Properties
If the properties window displays the message:
"Failed to indicate all required WMI classes"
This confirms that WMI is malfunctioning on your system and needs to be repaired.
Step 2: Resolve the WMI Issue
WMI problems are related to Windows system functionality and should be addressed under your IT team's supervision. Based on user feedback, the following approaches have helped resolve WMI issues:
Option 1. Upgrade to Windows 11. If you are currently on Windows 10 or an older version, upgrading to Windows 11 has resolved WMI issues for some users.
Option 2. Reinstall Your Current Windows Version. Reinstalling Windows while keeping your files and applications can repair corrupted WMI components without affecting your data.
Option 3. Reset the WMI Repository. This is a more technical fix that requires IT expertise. It involves rebuilding the WMI repository from scratch. For detailed instructions, refer to Microsoft's guidance: WMI Missing or Failing Providers – Microsoft Tech Community
Still Having Issues?
If you have confirmed a WMI issue but are unable to resolve it, or if you are unsure whether WMI is the cause of your Plex-Earth problem, contact our support team with a description of the error and your system details.
Is this a Plex-Earth bug?
No. WMI is a Windows system component and its malfunction is unrelated to Plex-Earth itself. Plex-Earth relies on WMI during initialization, so when WMI is not working correctly, Plex-Earth cannot start. The fix requires addressing the underlying Windows issue.
My ribbon is empty but I don't see the WMI error message. Could WMI still be the cause?
Possibly, but an empty ribbon can also be caused by installation or connectivity issues. We recommend checking WMI functionality directly as described in Step 1 to confirm whether it is the cause before proceeding with WMI troubleshooting. If WMI is functioning correctly, refer to Plex-Earth Ribbon Missing, Empty, or Not Working for other possible causes.
Do I need IT support to fix this?
For Options 2 and 3, yes — IT involvement is strongly recommended, as both involve modifying core Windows components. Option 1 (upgrading to Windows 11) can generally be done by the user, but should still be done with awareness of any organizational IT policies regarding OS upgrades.
Will fixing WMI affect other software on my computer?
WMI is used by many Windows applications and management tools. Fixing WMI should improve the stability of other software that relies on it as well. However, since the fix involves modifying Windows system components, it is always best to involve your IT team to ensure the process is handled safely.
I see the WMI error message but WMI Control shows no issues. What should I do?
If WMI Control does not indicate a problem but you are still seeing the WMI error in Plex-Earth, there may be a more specific WMI provider issue that is not surfaced by the general WMI Control check. Submit your Plex-Earth log files to our support team so we can investigate further: How to Submit Your Plex-Earth Files for Troubleshooting.
