The Queensland Globe is a free online interactive tool that visualizes physical, geographical, and spatial data into a more traditional mapping experience. Use the globe to access hundreds of spatial data layers on Queensland roads, property and land parcels, topography, mining and exploration, land valuations, natural resources (vegetation, water, soil, etc.), and more.
In order to connect to the Queensland (QLD) Globe Tile Server, please follow the steps here.
You can find the layers from Queensland Globe below: (highlight the link, copy, and paste on the corresponding field)
Queensland basemap grey
https://gisservices.information.qld.gov.au/arcgis/rest/services/Basemaps/QldBase_Grey/MapServer/tile/{z}/{y}/{x}?blankTile=false&browserCache=Map
Queensland basemap lite
https://gisservices.information.qld.gov.au/arcgis/rest/services/Basemaps/QldMap_Lite/MapServer/tile/{z}/{y}/{x}?blankTile=false&browserCache=Map
Queensland topographic map
https://gisservices.information.qld.gov.au/arcgis/rest/services/Basemaps/QldMap_Topo/MapServer/tile/{z}/{y}/{x}?blankTile=false&browserCache=Map
Population centres
https://gisservices4.information.qld.gov.au/arcgis/rest/services/Location/CitiesAndTowns/MapServer/tile/{z}/{y}/{x}?blankTile=false&browserCache=Map
Road and rail
https://gisservices4.information.qld.gov.au/arcgis/rest/services/Transportation/RoadsCache/MapServer/tile/{z}/{y}/{x}?blankTile=false&browserCache=Map
To access QLD's imagery, you can connect to their Web Map Tile Server as described here. Select WMTS instead of WMS and paste the following URL when setting up a new map layer:
https://spatial-img.information.qld.gov.au/arcgis/rest/services/Basemaps/LatestStateProgram_AllUsers/ImageServer/WMTS/1.0.0/WMTSCapabilities.xml

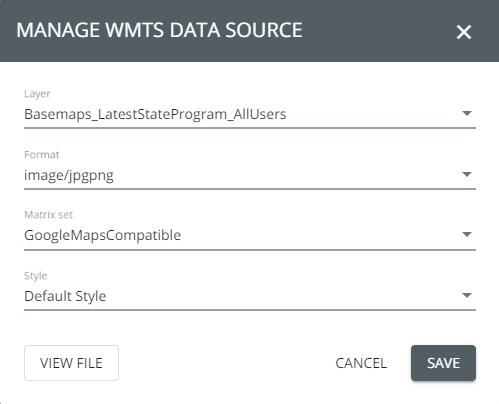

Keep in mind to manage the WMTS data source and pick from the available options for each dropdown like what is shown below.
Connect to Queensland Globe Tile Server and design your project to resist wild weather and natural disaster with high-quality location-based information like a boss through Plex-Earth.
We hope that you have found this introduction on how to connect to the Queensland Globe (Australia), helpful. Feel free to contact us at support@plexscape.com for any questions you may still have.
