Overview
Cut and fill is a standard earthwork volume calculation method in Autodesk Civil 3D used in civil engineering and land development projects to balance soil excavation and embankment operations. The process involves either removing material (cut) or adding material (fill) to achieve a required terrain design or grading plan.
Accurate cut and fill volume calculations are essential for:
Construction planning
Cost estimation
Material management
Earthwork optimization
Autodesk Civil 3D provides tools to perform these calculations through surface comparison and volume surfaces. When combined with Plex-Earth terrain data, engineers can quickly obtain reliable elevation models and perform detailed earthwork analysis.
This tutorial demonstrates how to calculate cut and fill earthwork volumes in Civil 3D using a terrain model generated with Plex-Earth and a proposed design surface.
Workflow Summary
The earthwork analysis process includes the following steps:
Import terrain data using Plex-Earth
Create a Civil 3D base surface
Create a proposed earthwork surface
Generate a volume surface for cut and fill calculations
Produce a cut and fill report
Perform advanced earthwork analysis using section views

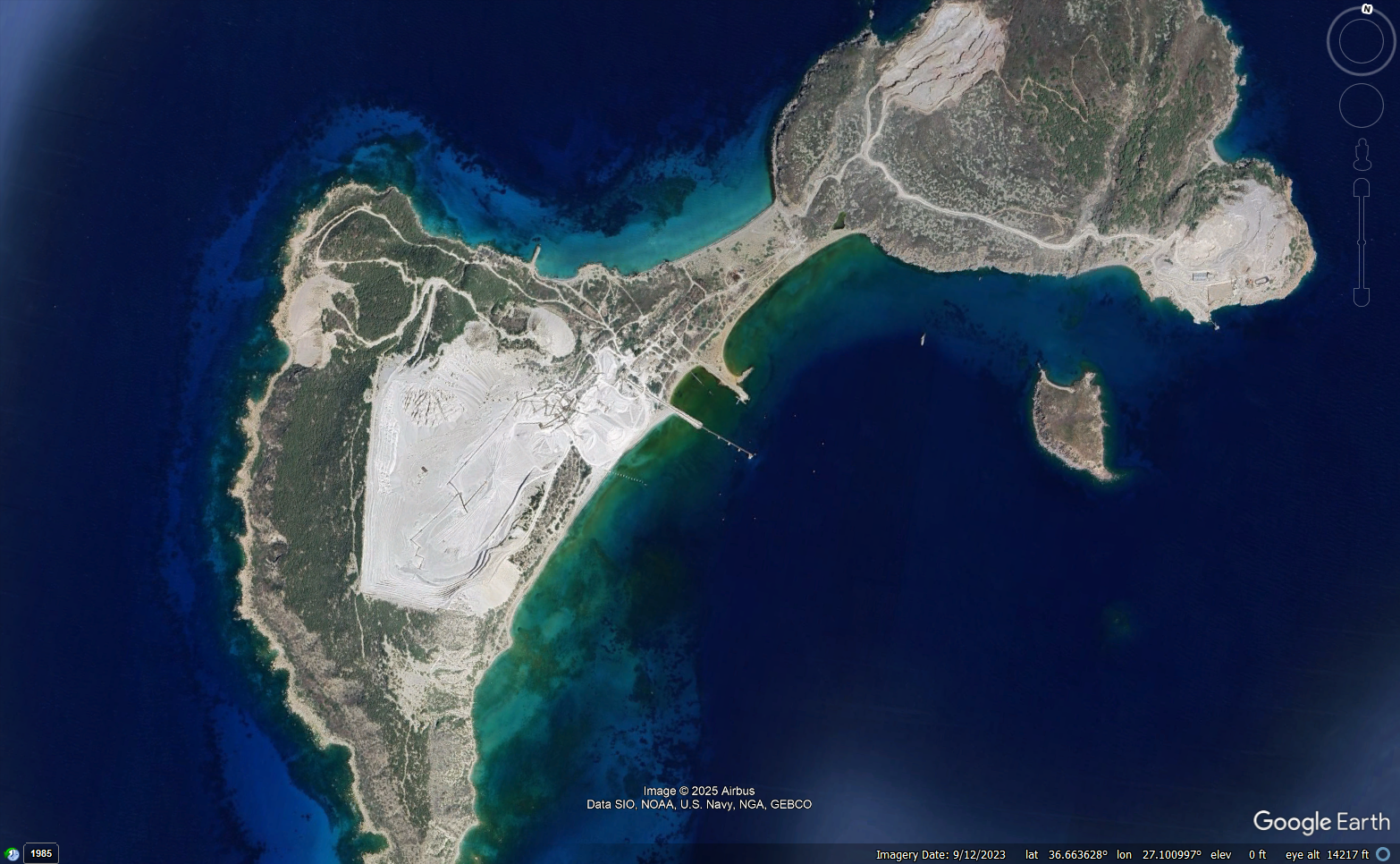

In our example, we want to expand the extraction work in an existing quarry.
Step 1: Create a Civil 3D Surface Using Plex-Earth
The first step is to obtain accurate terrain elevation data.
Use Plex-Earth to import terrain elevation information for the project area.

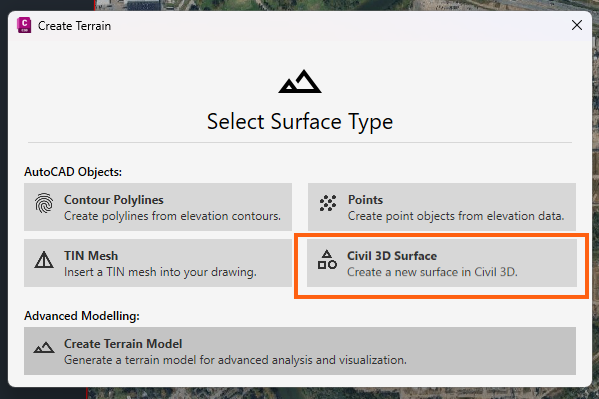

Generate a Civil 3D Surface.
This surface will represent the existing ground condition for the project.
Step 2: Create the Comparison Surface (Proposed Earthworks)
To perform cut and fill calculations, a second surface representing the proposed design is required. In this case, we have the respective contour lines in KML format, but you can use data in other forms as well.

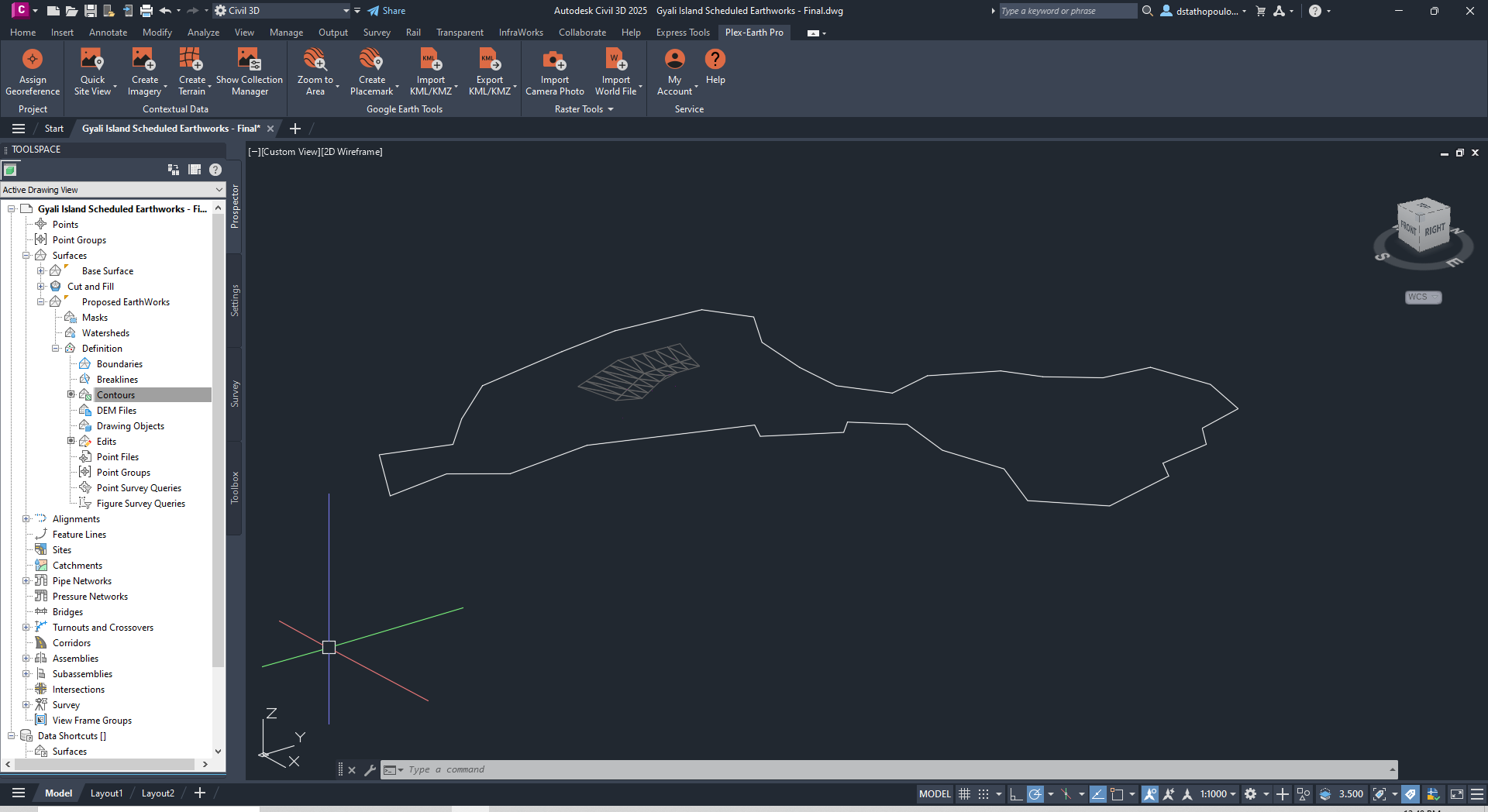

Import Proposed Earthwork Data
Use the Import KML/KMZ command in Plex-Earth to load the design contours.
Create a new Civil 3D surface for the proposed terrain. Go to Toolspace → Prospector → Surfaces → Right - Click → Create Surface
Add Contours to the Proposed Surface
In Toolspace → Prospector, expand the new surface.
Right-click Contours.
Select Add.
Choose the imported contour objects.
Name this surface:
Proposed Earthworks Surface
This surface represents the final terrain configuration after construction.
Step 3: Create a Civil 3D Volume Surface for Cut and Fill Analysis
Civil 3D calculates earthwork volumes by comparing the existing surface with the proposed surface.
Create the Volume Surface
Go to the Analyze tab in Civil 3D.
Select Volume Dashboard.
On the Panorama Volume Dashboard, click Create New Volume Surface.
Configure Surface Parameters
Set the following properties:
Name: Cut and Fill
Surface Type: TIN Volume Surface
Base Surface: Base Surface (existing terrain)
Comparison Surface: Proposed Earthworks
Cut Factor: 1.0
Fill Factor: 1.0
These parameters ensure that material removed and added is calculated at equal volume ratios.
Back to the Volume Dashboard, the Cut and Fill Volumes have been calculated in Cubic Meters. A Net Graph shows the compared amount of Cut and Fill (Red for Cut, Green for Fill).

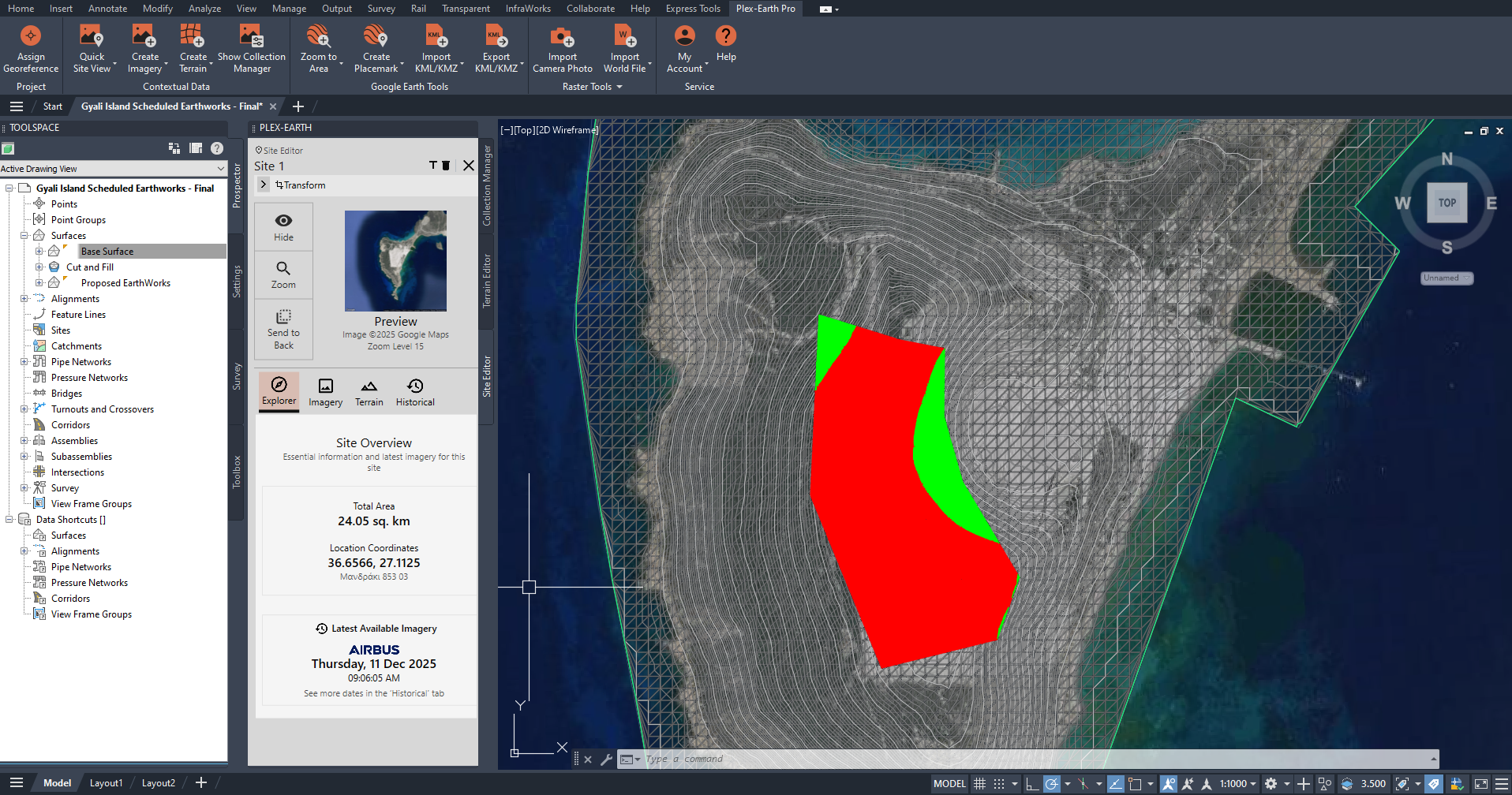

Apply Cut and Fill Visualization
To improve visualization:
Right Click Cut and Fill on Volume Dashboard
Open Surface Properties.
Select the Analysis tab.
Set the number of ranges to two.
-
Configure color bands:
Cut: Red
Fill: Green
This produces a clear visual representation of earthwork areas in the drawing.
Step 4: Generate a Cut and Fill Report
Civil 3D can automatically generate a detailed volume report.
Generate the Report
Return to the Volume Dashboard.
Select Generate Cut/Fill Report.
The generated report contains:
Total cut volume
Total fill volume
Net earthwork balance
This report can be exported or shared as part of project documentation.
Step 5: Perform Advanced Cut and Fill Analysis
For detailed earthwork analysis, Civil 3D allows cut and fill evaluation through section views.
Create an Alignment
Draw a polyline representing the analysis direction.
Go to Home → Alignment → Create Alignment from Objects.
Select the polyline and define the alignment direction.
Create Sample Lines
Go to Home → Sample Line.
Select the previously created alignment.
Use By Range of Stations to generate sample lines along the alignment.
Set the right and left width and the distance between the stations.
Sample lines define the cross-sections used for earthwork analysis.
Create Section Views
On the Home tab, select Create Multiple Section Views.
Choose the alignment and sample line group.
Generate cross-section views.
These views display terrain profiles for each section.
Compute Material Volumes
To include cut and fill materials in the section analysis:
Go to Analyze → Compute Materials.
Select the alignment and sample line group.
Configure the following surfaces:
| Surface Role | Surface |
|---|---|
| Base Surface | Existing Ground |
| Datum | Proposed Earthworks |
Material definitions include:
Ground Removed (Cut) -Red
Ground Fill - Green
The resulting section views display cut and fill areas using color coding.
Generate Section Volume Reports
To finalize the analysis:
Go to Analyze → Volume Report.
Select the sample line group.
The report provides:
Cut and fill volumes per station
Cumulative earthwork totals
Detailed section-by-section analysis
A Total Volume Table and Material Volume Table can also be inserted directly into the drawing for documentation.
Go to Analyze → Total Volume Table, and
Go to Analyze → Material Volume Table
Conclusion
The cut and fill method is a critical workflow for earthwork volume calculation in Autodesk Civil 3D during terrain modification and grading operations.
Using Autodesk Civil 3D combined with Plex-Earth elevation data, engineers can:
Generate accurate terrain models
Compare existing and proposed surfaces
Calculate earthwork volumes efficiently
Produce detailed reports and section analyses
Access to high-resolution elevation data and automated Civil 3D analysis tools significantly improves earthwork planning accuracy, reduces project risk, and optimizes construction costs.
We hope that you have found this article about cut and fill earthwork volume calculation in Civil 3D helpful. Feel free to contact us at support@plexscape.com for any questions you may still have.
