You can use the Plex-Earth features to create terrain models from free, quality data you can find online.
Use Data for Terrain Model creation
About the Data

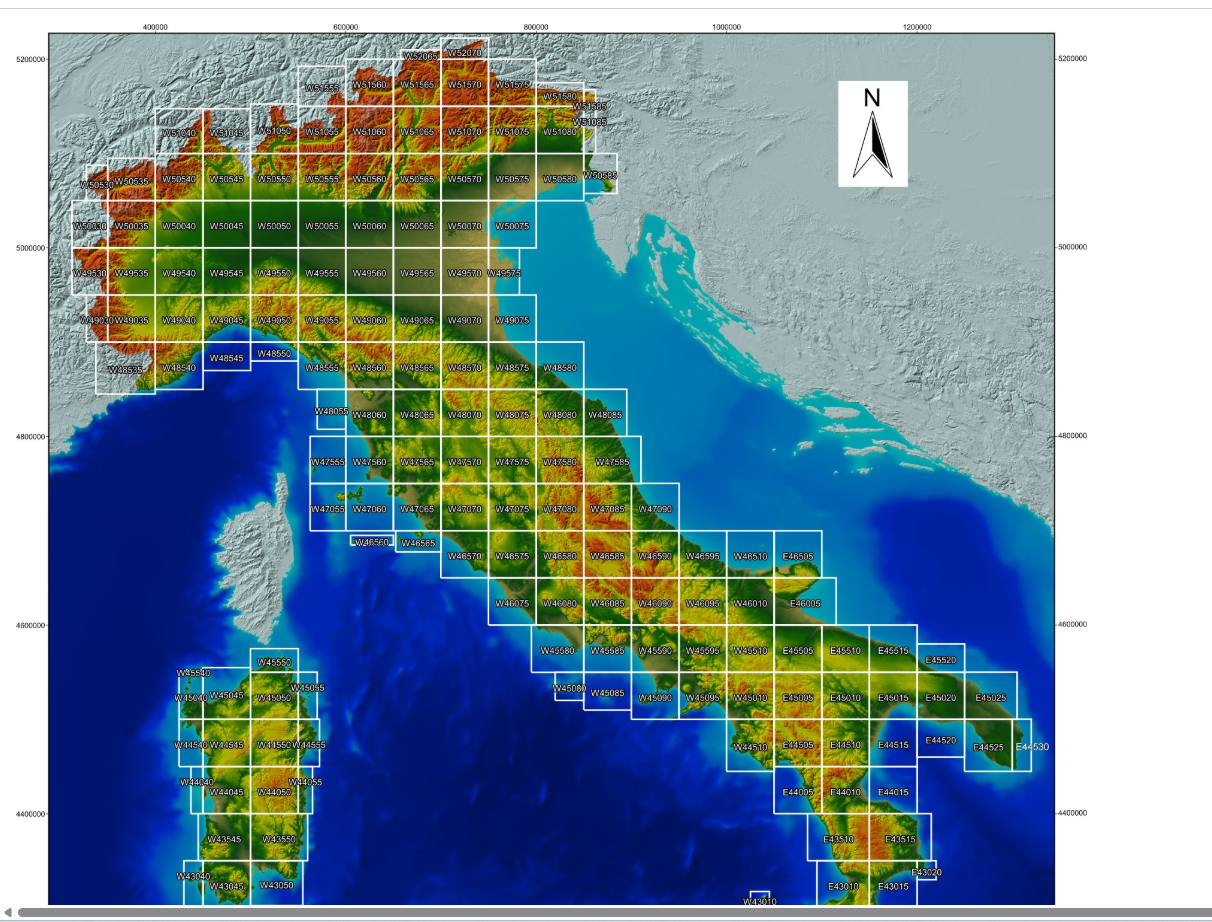

Data Provider: Instituto Nazionale di Geofisica a Vulcanologia (INGV)
Link: https://tinitaly.pi.ingv.it/Download_Area1_1.html
Data Type: Tinitaly/1.1 - DEM (Digital Elevation Model)
Resolution: 10 meters
Terms/License: https://tinitaly.pi.ingv.it/ - CC BY 4.0
More Info: https://tinitaly.pi.ingv.it/Tinitaly_1_1_AccompanyingNotes.pdf
Data Download
Download the proper GeoTIFF from the following page:
https://tinitaly.pi.ingv.it/Download_Area1_1.html
Choose the proper box and download, then unzip the file.
Use Data for Terrain Model creation
After downloading the data, you can now proceed with creating a terrain model in CAD.
In AutoCAD or BricsCAD, go to the Plex-Earth ribbon → click on the Create Terrain dropdown box → Terrain from GeoTIFF → load the GeoTIFF downloaded.
In the Import GeoTIFF palette, specify the area by clicking on the Select Area button, then use your mouse cursor to draw a rectangle, and select the desired resolution using the slider.
Click on the Import Terrain button
-
Select the Surface Type from the options available:
Contour Polylines
Points
TIN Mesh
Civil 3D Surface
Create Terrain Model
For the first four options, CAD objects are directly imported, ready to be used in CAD or other software.
The last option creates a Plex-Earth terrain model, which can be saved in your DWG, and with the help of Plex-Earth, customize the terrain further and also insert the data as CAD objects later on.
Check out the full guide here: Create Terrain from GeoTIFF

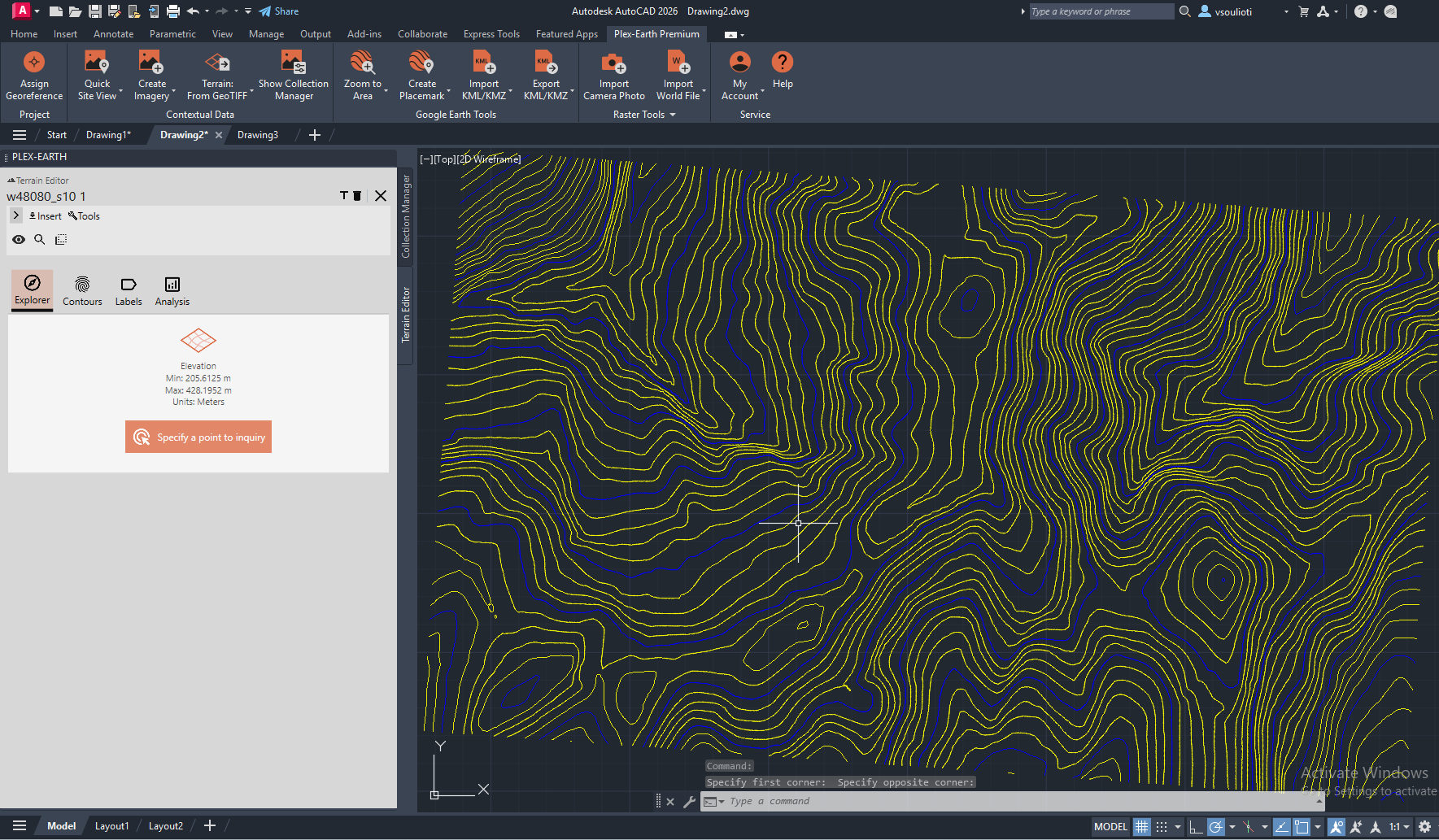

Here is the result!
Do you know any source of terrain data that you are interested in using?
Click Here and send us the following details:
Link to the Data provider, Data provider, or any other info you might find relevant.
