You can use the Plex-Earth features to create terrain models from free, quality data you can find online.
About the Data
Data Provider: Republic of Estonia | Land and Spatial Development Board
Link: https://geoportaal.maaamet.ee/eng/Maps-and-Data/Elevation-data/Download-Elevation-Data-p664.html
Data Type: Digital Terrain Model (DTM), Digital Surface Model (DSM)
Resolution: 1-meter (5-meter also available)
Terms of Use: Spatial data is available for free use by everyone. Please refer to the origin and extraction date of data (e.g., " Map data: Republic of Estonia Land and Spatial Development Board 2026"). By downloading data, you agree to the terms of use for open data.
More Info: Download Elevation Data | Geoportal | Estonian Land and Spatial Development Board
Data Download
Visit the following URL:

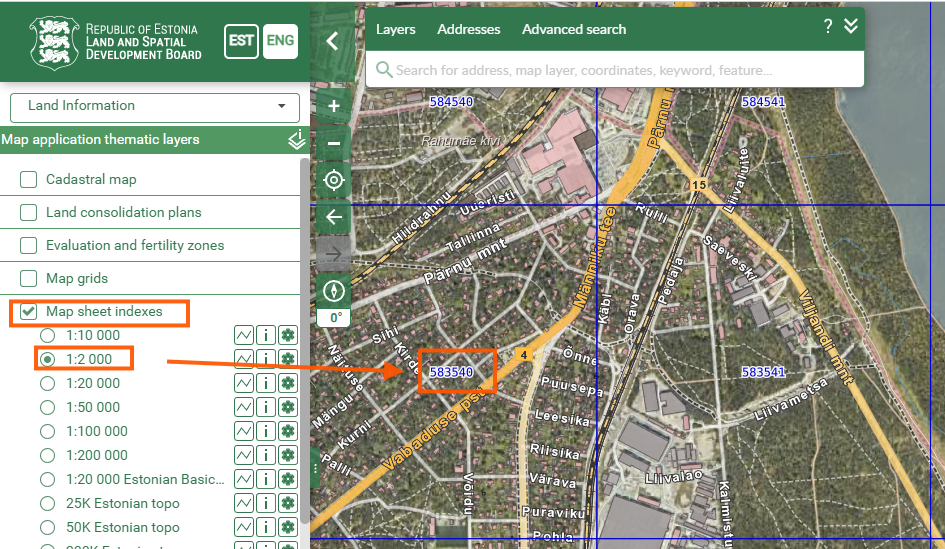

https://xgis.maaamet.ee/xgis2/page/link/NaGkp0MZFor DTM: Go to Map Indexes → 1:10000
For DSM: Go to Map Indexes → 1:2000

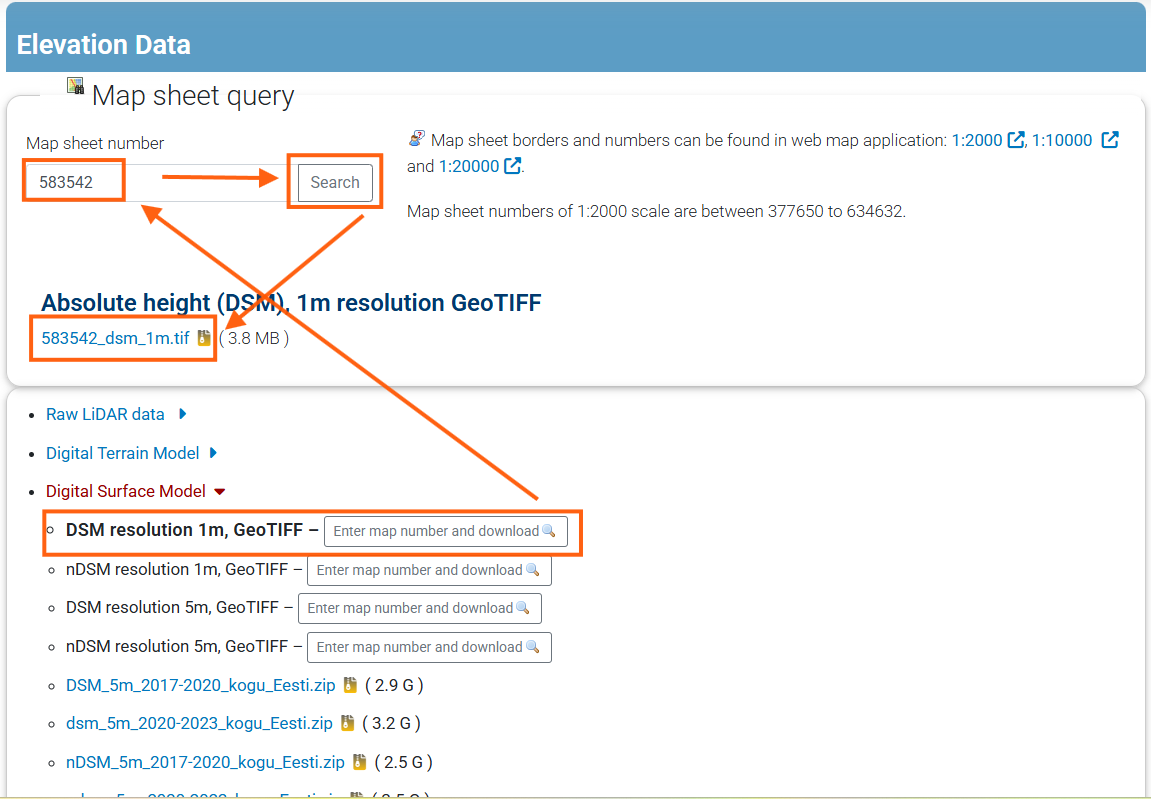

Find the map sheet number of the area of interest.Go to https://geoportaal.maaamet.ee/eng/Maps-and-Data/Elevation-data/Download-Elevation-Data-p664.html
Select Data Type (Digital Terrain Model, Digital Surface Model) and Resolution (1 meter, 5 meter) → Enter Map sheet Number → Search → Download tif
Use Data for Terrain Model creation
After downloading the data, you can now proceed with creating a terrain model in CAD.
In AutoCAD or BricsCAD, go to the Plex-Earth ribbon → click on the Create Terrain dropdown box → Terrain from GeoTIFF → load the GeoTIFF downloaded.
In the Import GeoTIFF palette, specify the area by clicking on the Select Area button, then use your mouse cursor to draw a rectangle, and select the desired resolution using the slider.
Click on the Import Terrain button
-
Select the Surface Type from the options available:
Contour Polylines
Points
TIN Mesh
Civil 3D Surface
Create Terrain Model
For the first four options, CAD objects are directly imported, ready to be used in CAD or other software.
The last option creates a Plex-Earth terrain model, which can be saved in your DWG, and with the help of Plex-Earth, customize the terrain further and also insert the data as CAD objects later on.
Check out the full guide here: Create Terrain from GeoTIFF

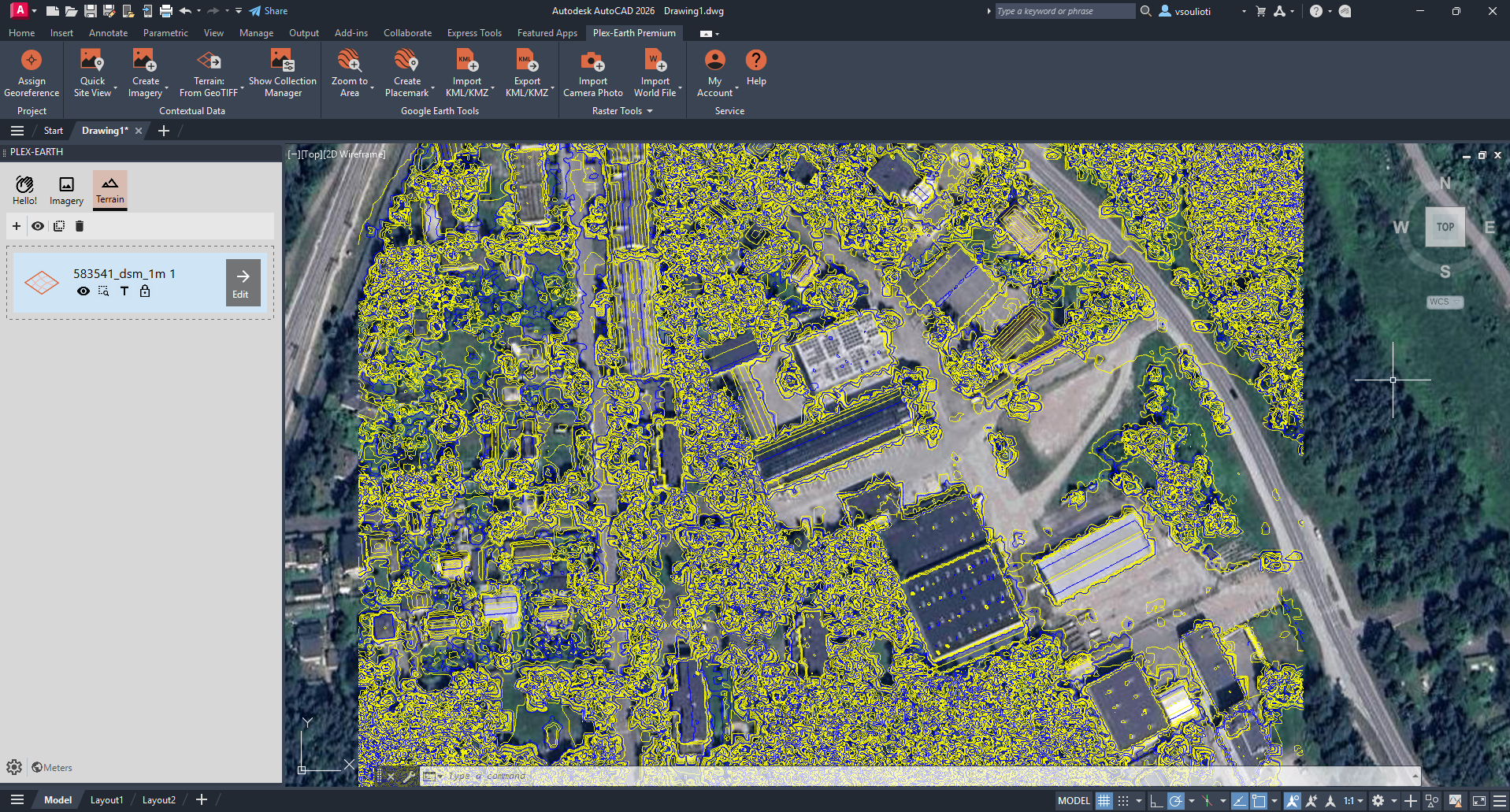

Here is the result of 1 meter DSM!
