England: 1 meter LIDAR Composite DTM - Department for Environment, Food & Rural Affairs

You can utilize the Plex-Earth features to create terrain models from free, high-quality data available online.

About the Data

Data Download

Use Data for Terrain Model creation

About the Data

Data Provider: Department for Environment, Food & Rural Affairs

Link: https://environment.data.gov.uk/survey

Data Type: LIDAR Composite Digital Terrain Model (DTM)

Resolution: 1 m

Terms and Conditions: Defra Data Services Platform, Data © DEFRA. Licensed under the Open Government Licence v3.0

More Info: https://environment.data.gov.uk/dataset/13787b9a-26a4-4775-8523-806d13af58fc

Data Download

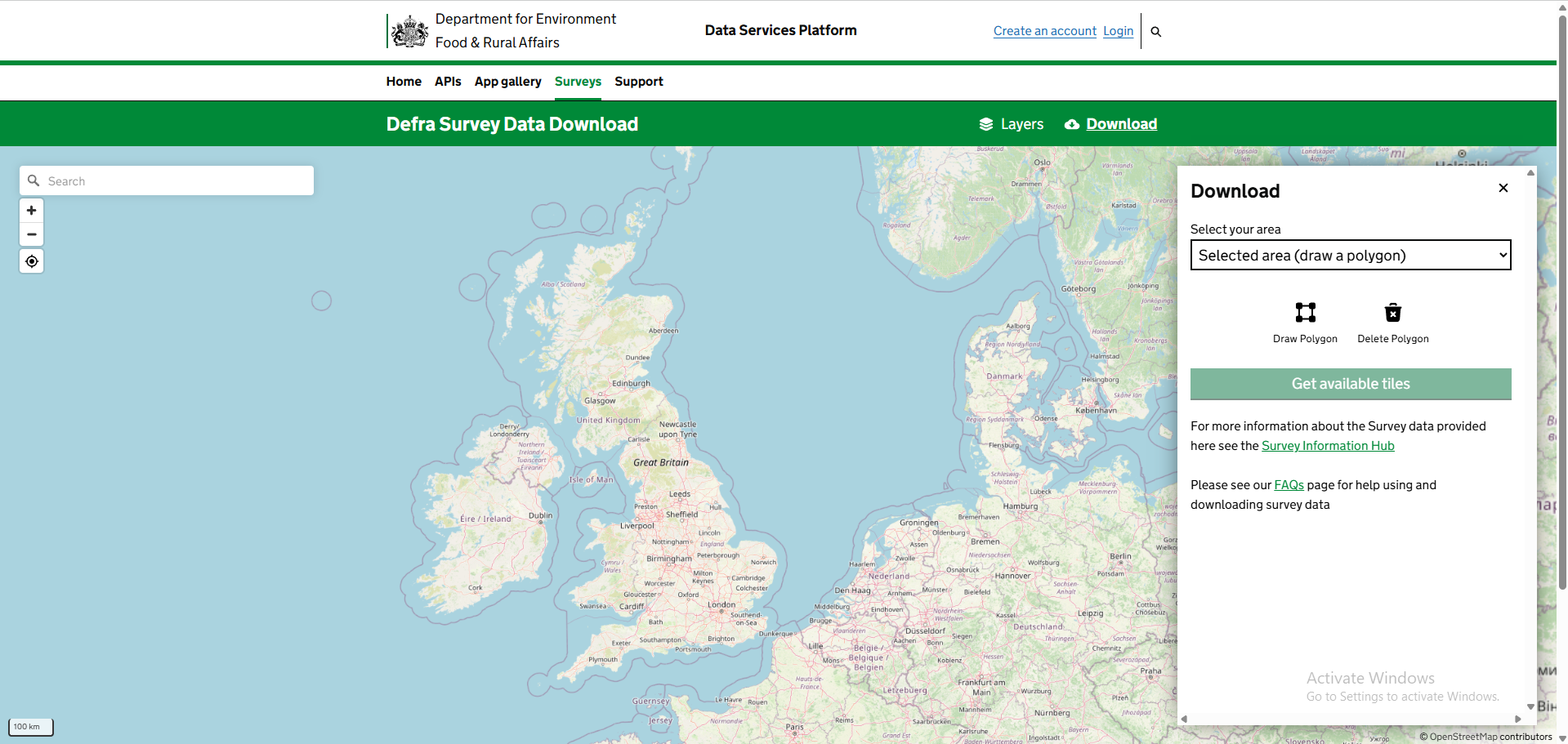

1. Visit the following URL: https://environment.data.gov.uk/survey

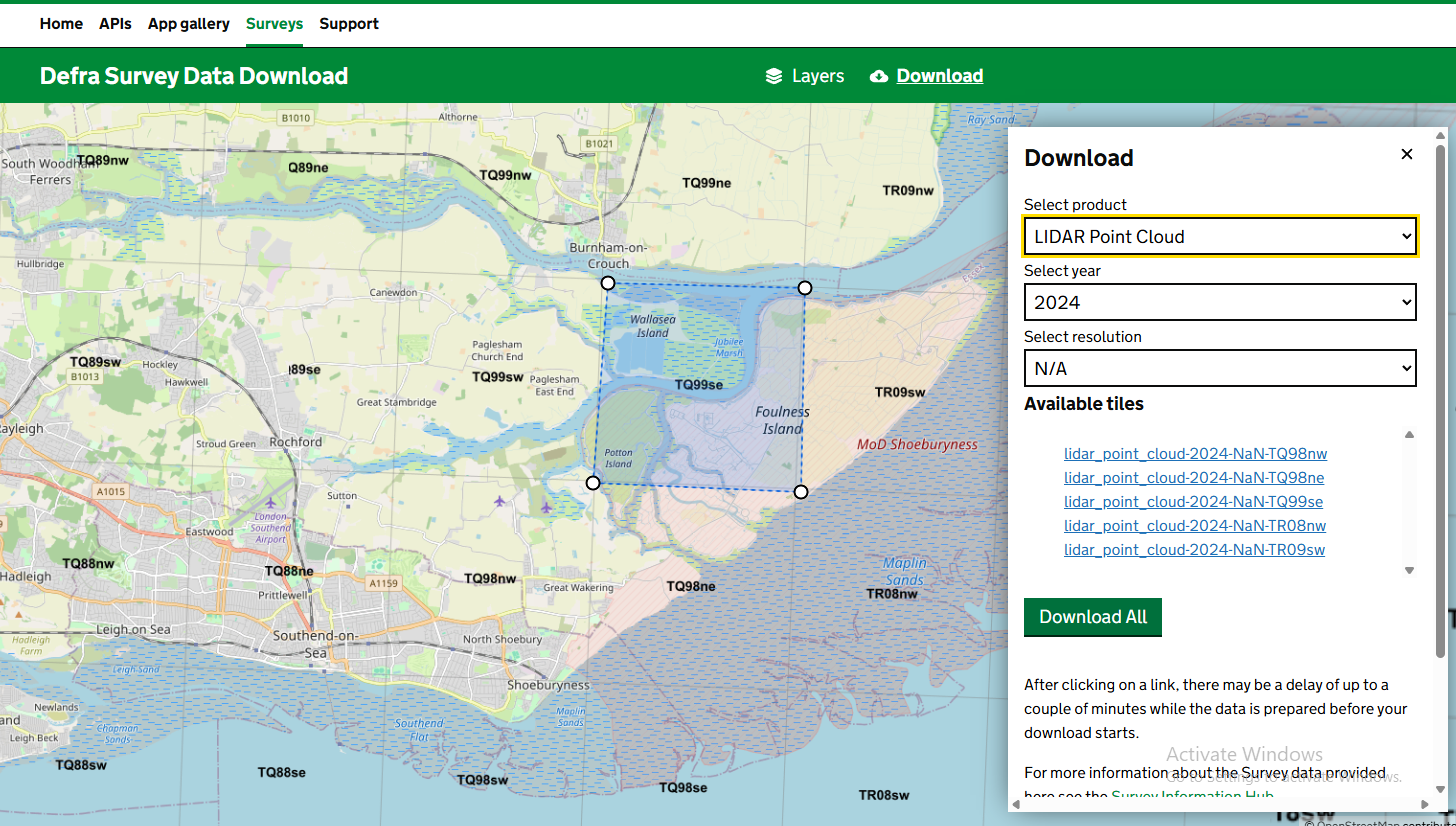

2. Locate the Area and check the available tiles

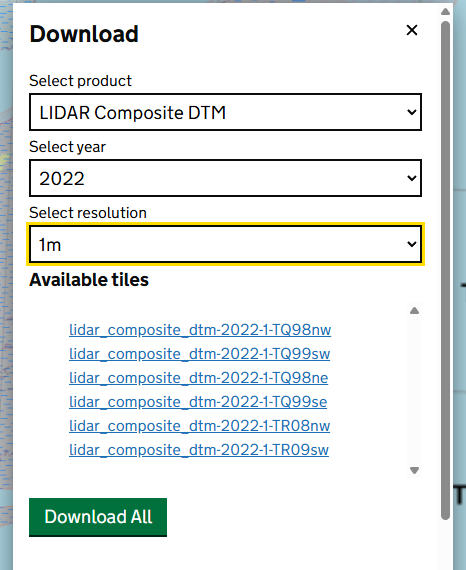

3. Select as Product the LIDAR Composite, resolution 1 meter, and download

   You can download all the tiles or select any of them using their hyperlink.


Use Data for Terrain Model creation

After downloading the data, you can now proceed with creating a terrain model in CAD.

1. In AutoCAD or BricsCAD, go to the Plex-Earth ribbon → click on the Create Terrain dropdown box → Terrain from GeoTIFF → load the GeoTIFF downloaded.

2. In the Import GeoTIFF palette, specify the area by clicking on the Select Area button, then use your mouse cursor to draw a rectangle, and select the desired resolution using the slider.

3. Click on the Import Terrain button

4. Select the Surface Type from the options available:

   • Contour Polylines

   • Points

   • TIN Mesh

   • Civil 3D Surface

   • Create Terrain Model

For the first four options, CAD objects are directly imported, ready to be used in CAD or other software.

The last option creates a Plex-Earth terrain model, which can be saved in your DWG, and with the help of Plex-Earth, customize the terrain further and also insert the data as CAD objects later on.

Check out the full guide here: Create Terrain from GeoTIFF

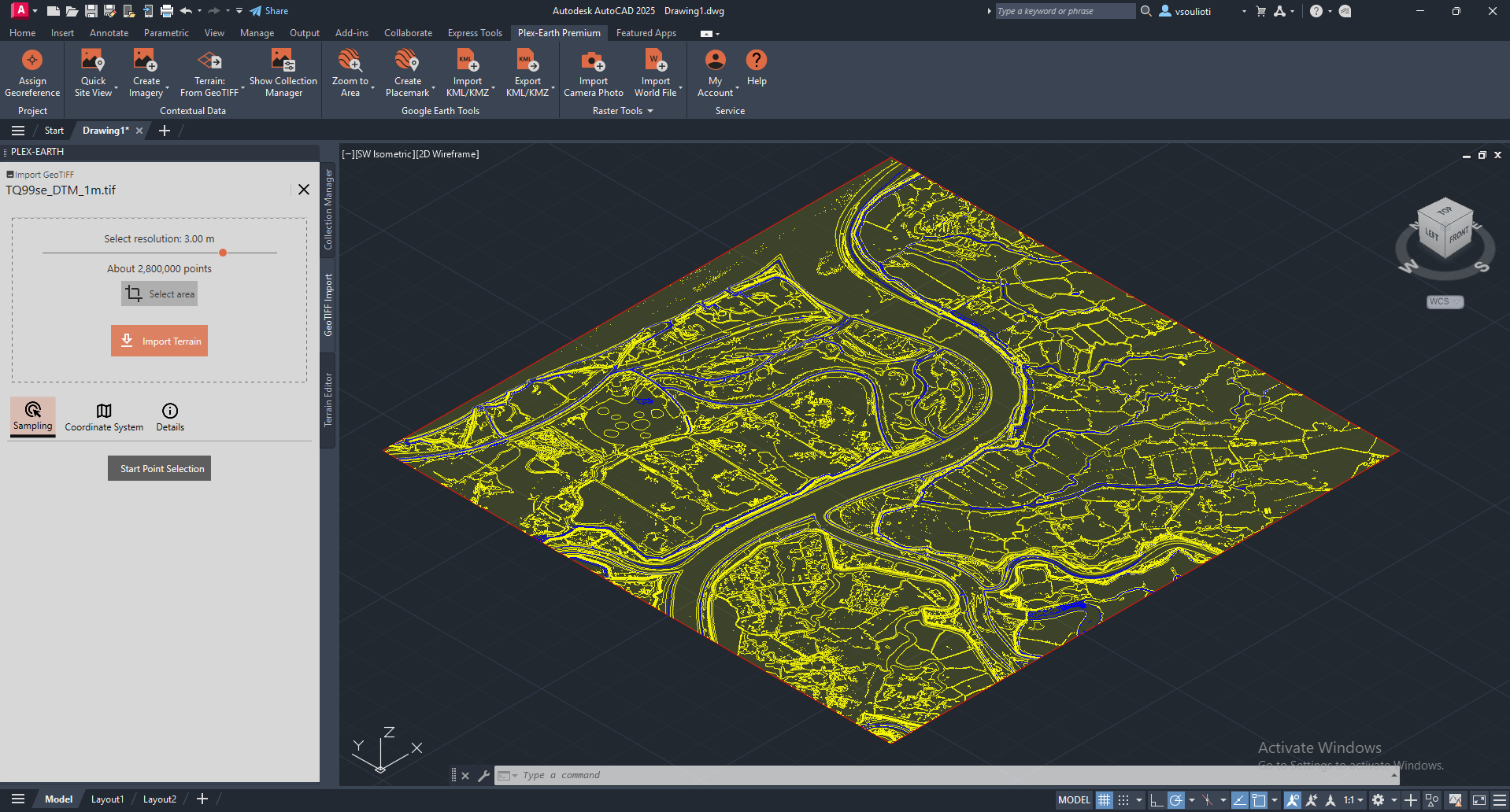

Here is the result!
