You can use the Plex-Earth features to create terrain models from free, quality data you can find online.
About the Data
Data Provider: Geoportal ČÚZK
Link:
For DTM: Geoprohlížeč
For DSM: ČÚZK: Geoportál
Data Type: Digital Terrain Model (DTM), Digital Surface Model (DSM)
Resolution: 5-meter
Terms of Use: Creative Commons CC BY 4.0 License
According to Regulation No 31/1995 Sb.
Data Download
Visit the following URL:
For DTM:
https://geoportal.cuzk.cz/(S(aurxnlvzvcy5z333unvweukq))/Default.aspx?mode=TextMeta&side=vyskopis&metadataID=CZ-CUZK-DMR5G-V&head_tab=sekce-02-gp&menu=302
For DSM:

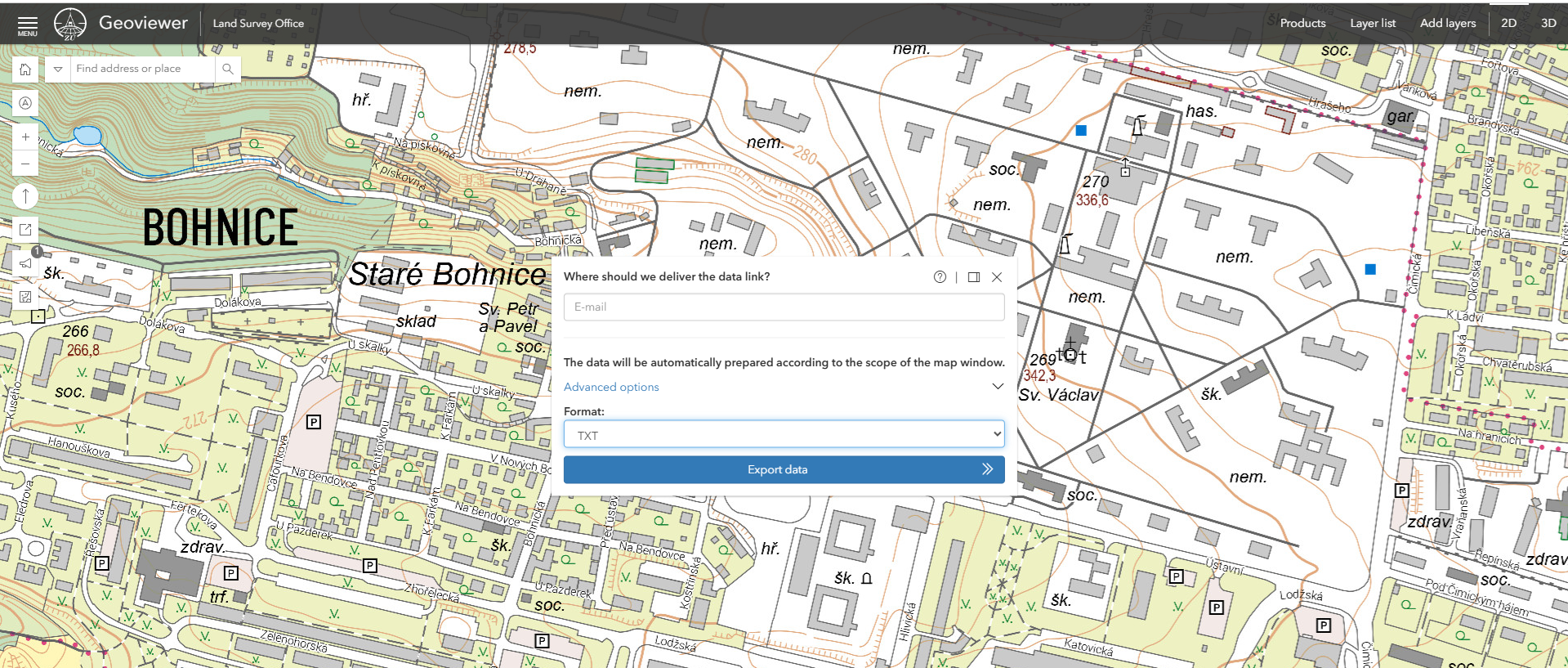

https://geoportal.cuzk.cz/(S(egj1soiwj2pt35ph554yvwtp))/Default.aspx?lng=EN&mode=TextMeta&side=vyskopis&metadataID=CZ-CUZK-DMP1G-V&mapid=8&menu=303Go to Data Download → Select Export of a Current Extent
Zoom in on the Map in the back until its extents include all of your Area → Enter your email → Choose TXT format
Use Data for Terrain Model creation
After downloading the data, you can now proceed with creating a terrain model in CAD.
In AutoCAD or BricsCAD, go to the Plex-Earth ribbon → click on the Create Terrain dropdown box → Terrain from file→ load the xyz file downloaded.
Use the number of column X → 1, number of column Y→ 2, number of column Z→ 3, and delimiter → space.
A Plex-Earth terrain model is created, which can be saved in your DWG, and with the help of Plex-Earth, customize the terrain further, and also insert the data as CAD objects later on.
Check out the full guide here: Create Terrain from File

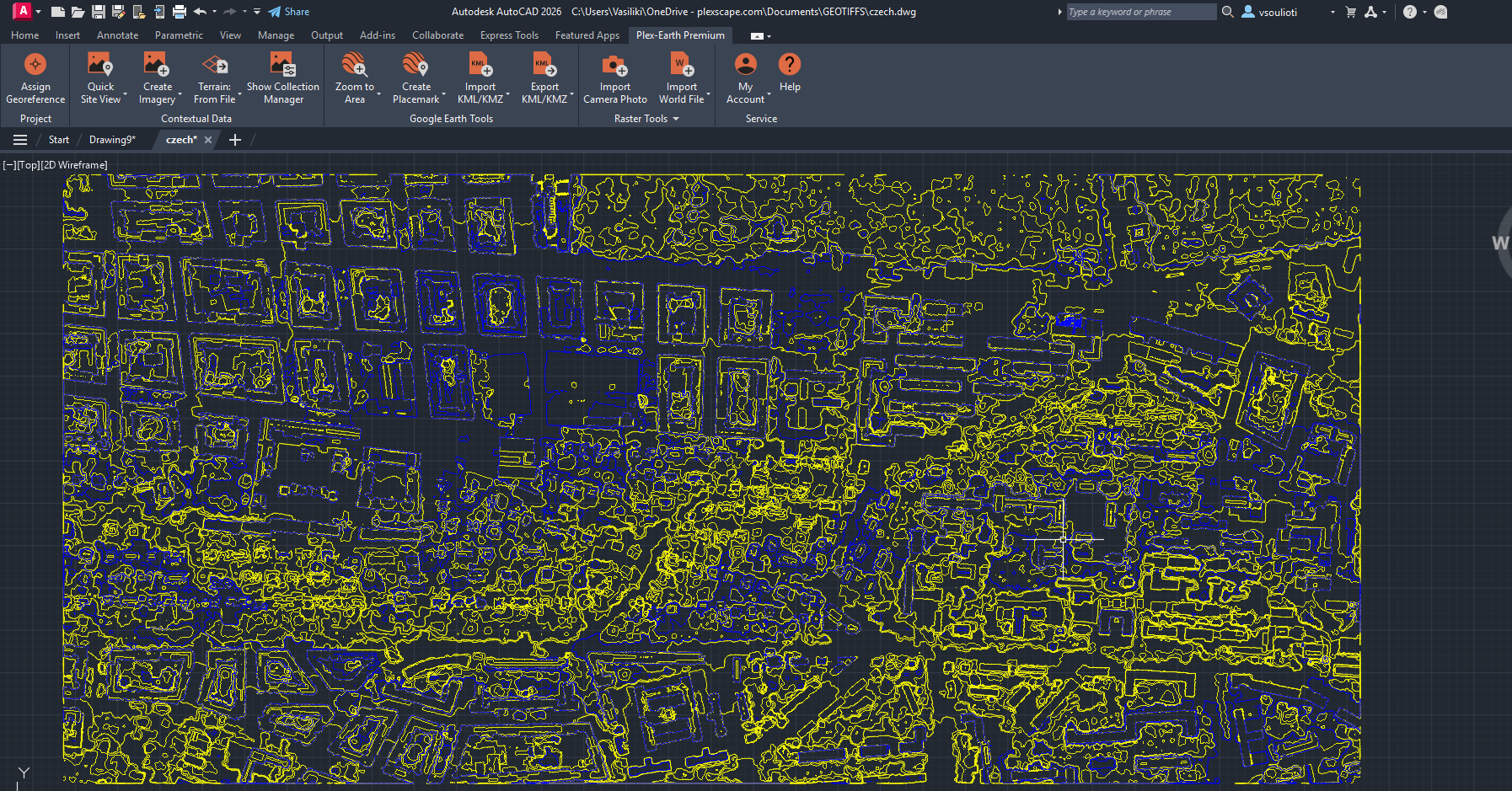

Here is the result!
