You can use the Plex-Earth features to create terrain models from free, quality data you can find online.
About the Data
Data Provider: Geoinformation Department of Land Tyrol
Link: https://tiris.maps.arcgis.com/apps/webappviewer/index.html?id=5e3071044cb44e76843d110baef8b138
Data Type: DTM (Digital Terrain Model)
Max Ground Resolution: 0.5 meters
Absolute Height Accuracy: +-0.10 meters (1p)
Point Density: min 8pt/sq.m
Terms of Use: Informationsweiterverwendung | Land Tirol, Elevation data: © Land Tirol
More Info: https://www.tirol.gv.at/sicherheit/geoinformation/geodaten-tiris/laserscandaten/
Data Download
Visit the following URL: https://tiris.maps.arcgis.com/apps/webappviewer/index.html?id=5e3071044cb44e76843d110baef8b138

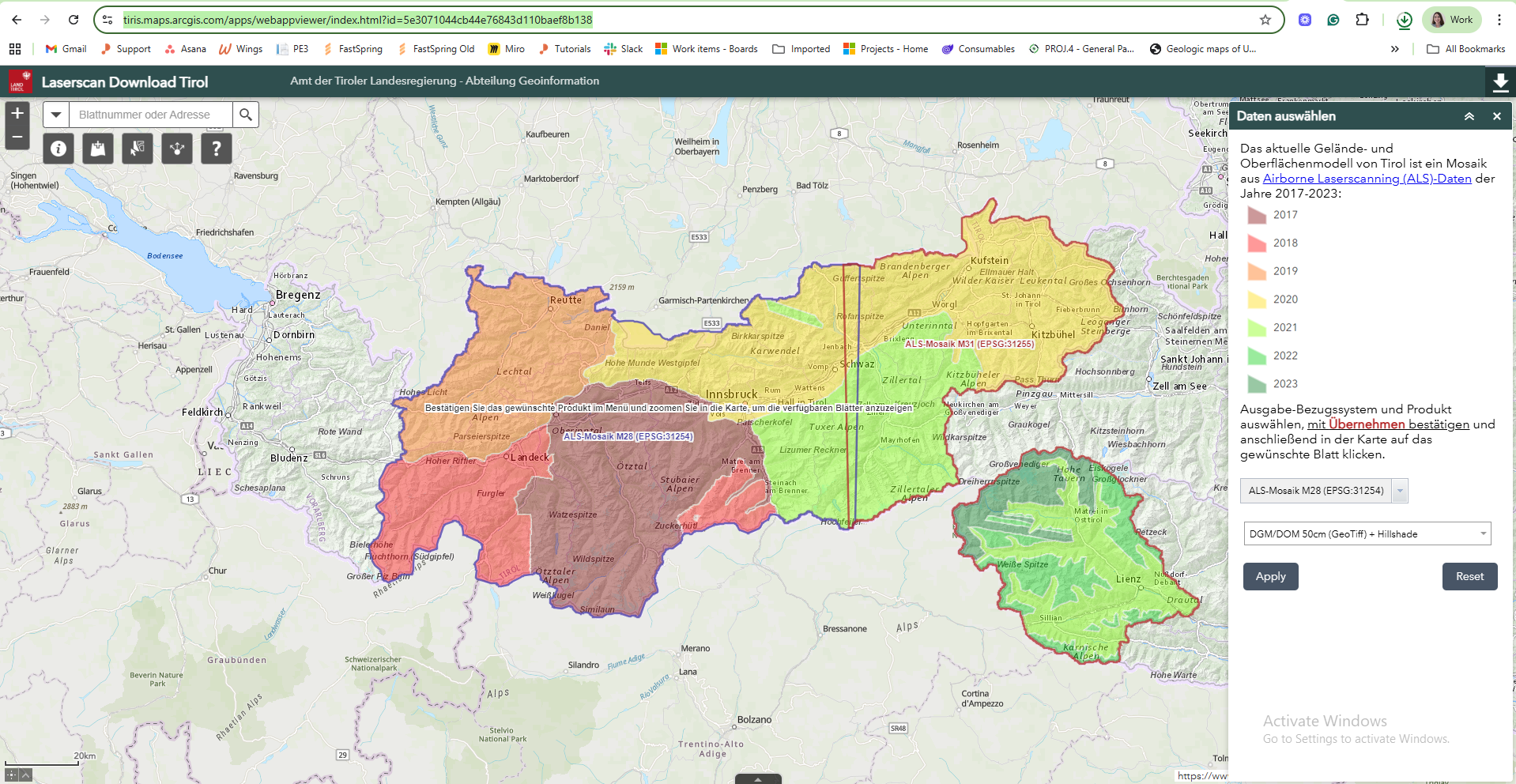

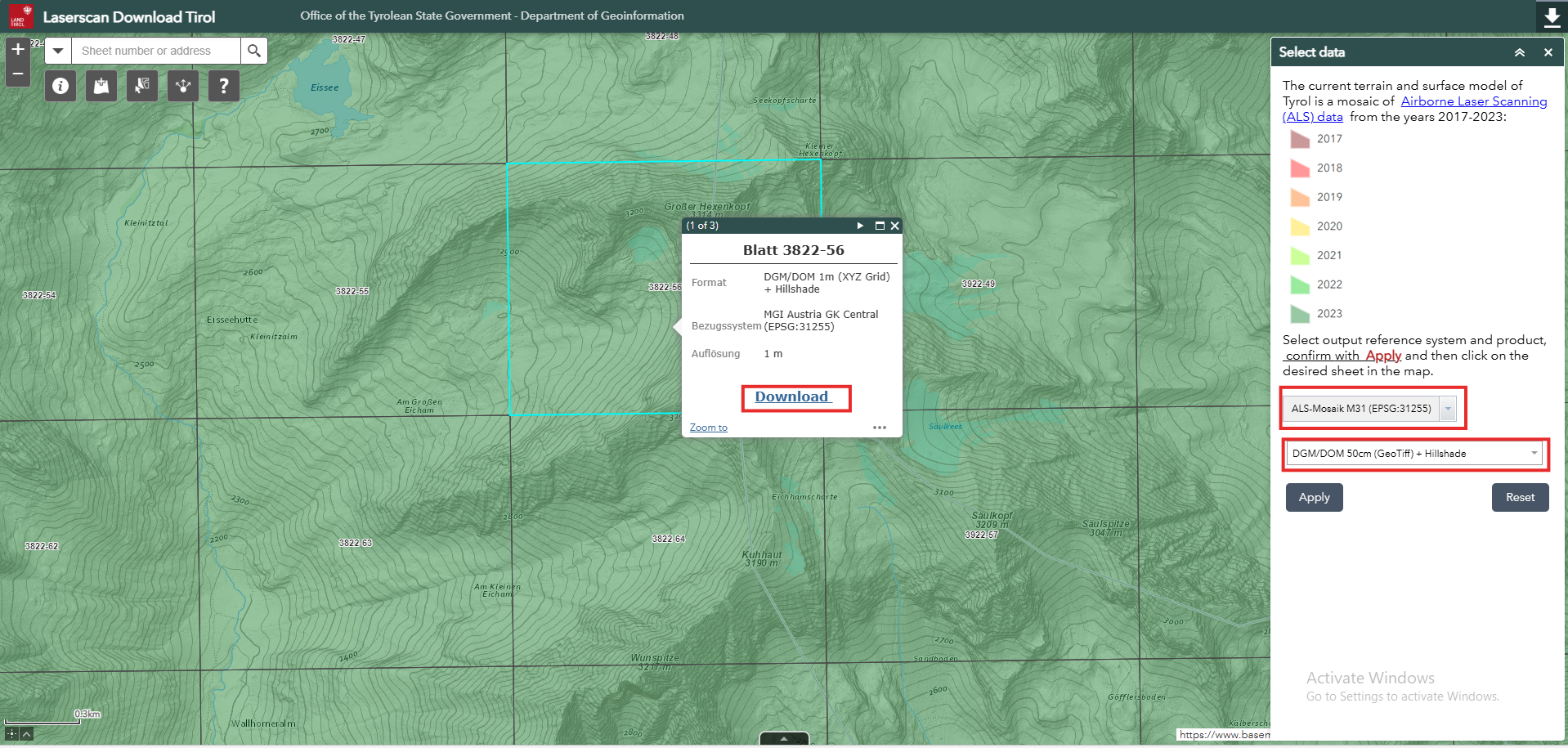

You can check the color index on the right to see the capture year of the data available.Zoom in on your area of interest, and on the right screen, apply the parameters of your search. When the tiles appear, select the tile of your choice and select Download. Make sure you select GeoTIFF as the data type.
Use Data for Terrain Model creation
After downloading the data, you can now proceed with creating a terrain model in CAD.
In AutoCAD or BricsCAD, go to the Plex-Earth ribbon → click on the Create Terrain dropdown box → Terrain from GeoTIFF → load the GeoTIFF downloaded.
In the Import GeoTIFF palette, specify the area by clicking on the Select Area button, then use your mouse cursor to draw a rectangle, and select the desired resolution using the slider.
Click on the Import Terrain button
-
Select the Surface Type from the options available:
Contour Polylines
Points
TIN Mesh
Civil 3D Surface

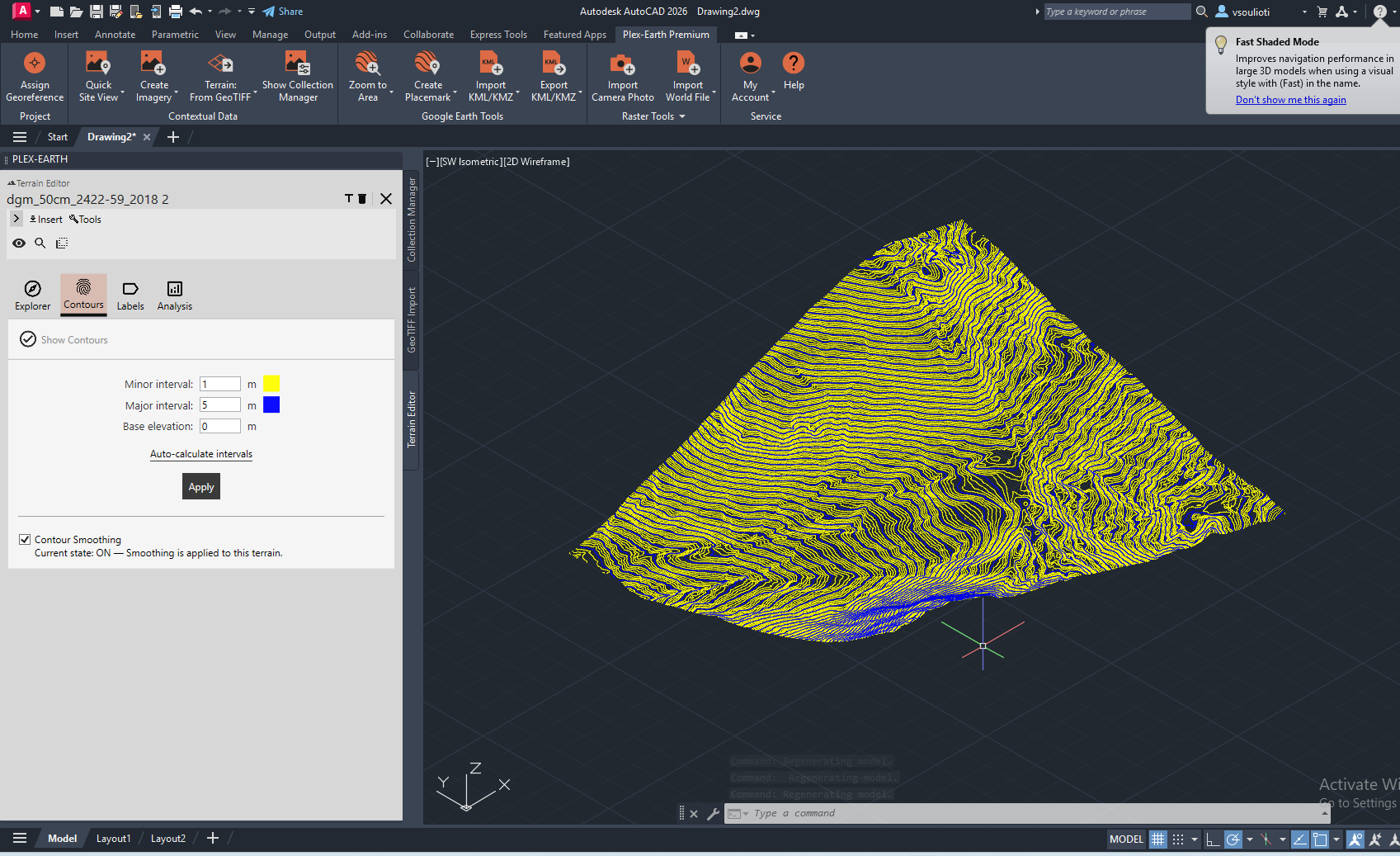

Create Terrain Model
For the first four options, CAD objects are directly imported, ready to be used in CAD or other software.
The last option creates a Plex-Earth terrain model, which can be saved in your DWG, and with the help of Plex-Earth, customize the terrain further and also insert the data as CAD objects later on.
Check out the full guide here: Create Terrain from GeoTIFF
Here is the result!
Do you know any source of terrain data that you are interested in using?
Click Here and send us the following details:
Link to the Data provider, Data provider, or any other info you might find relevant.
