Norway: 1 meter DEM - Norwegian Mapping Authority

You can utilize the Plex-Earth features to create terrain models from free, high-quality data available online.

About the Data

Data Download

Use Data for Terrain Model creation

About the Data

Data Provider: Norwegian Mapping Authority

Link: https://hoydedata.no/LaserInnsyn2/

Data Type: Detailed Terrain Model (DTM)

Resolution: 1 meter

Terms of Use: Elevation data © Kartverket, used under the Kartverket terms of use

More Info: https://www.kartverket.no/en/api-and-data/terrengdata

Data Download

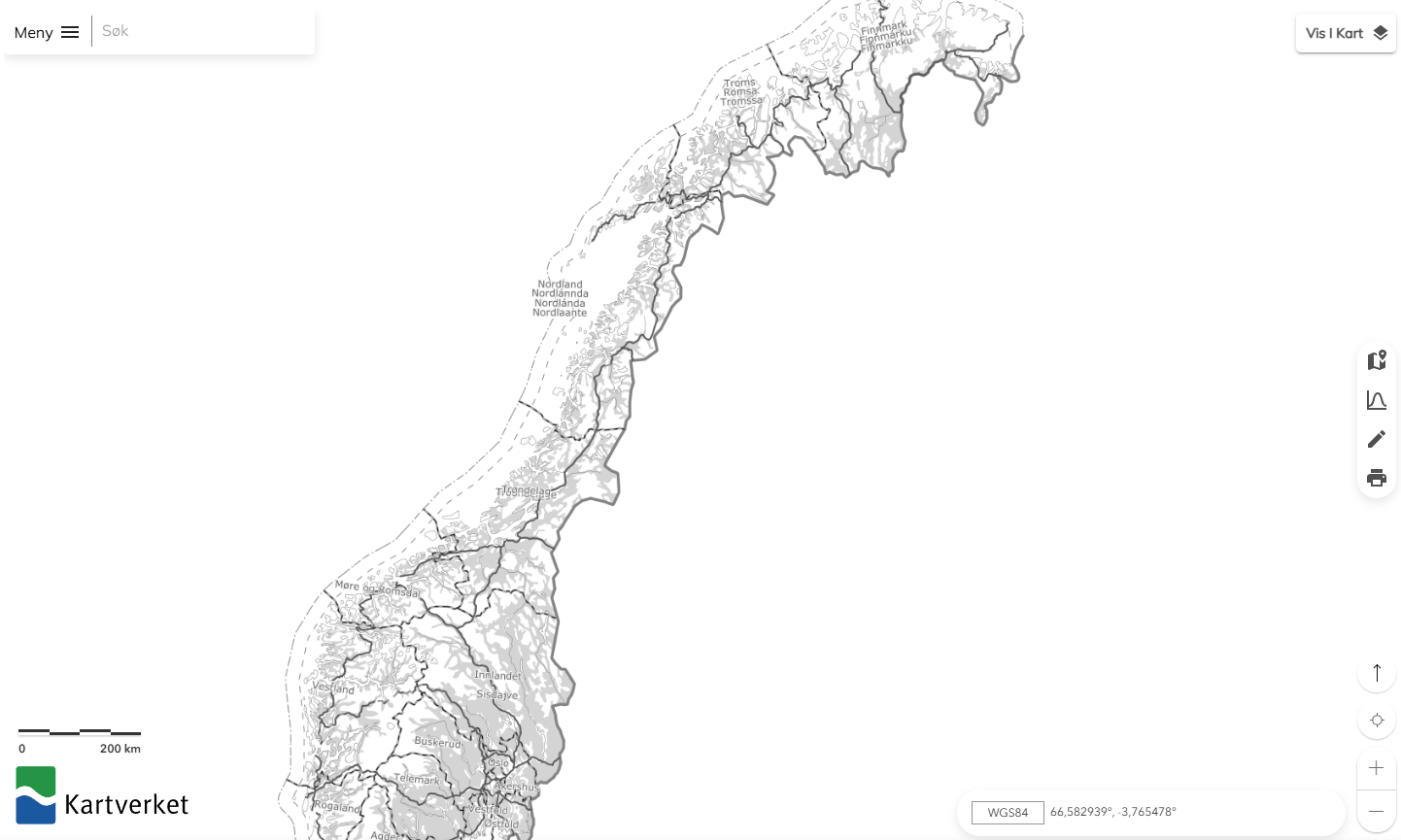

1. Visit the following URL:  https://hoydedata.no/LaserInnsyn2/


2. Locate Area and  Download.

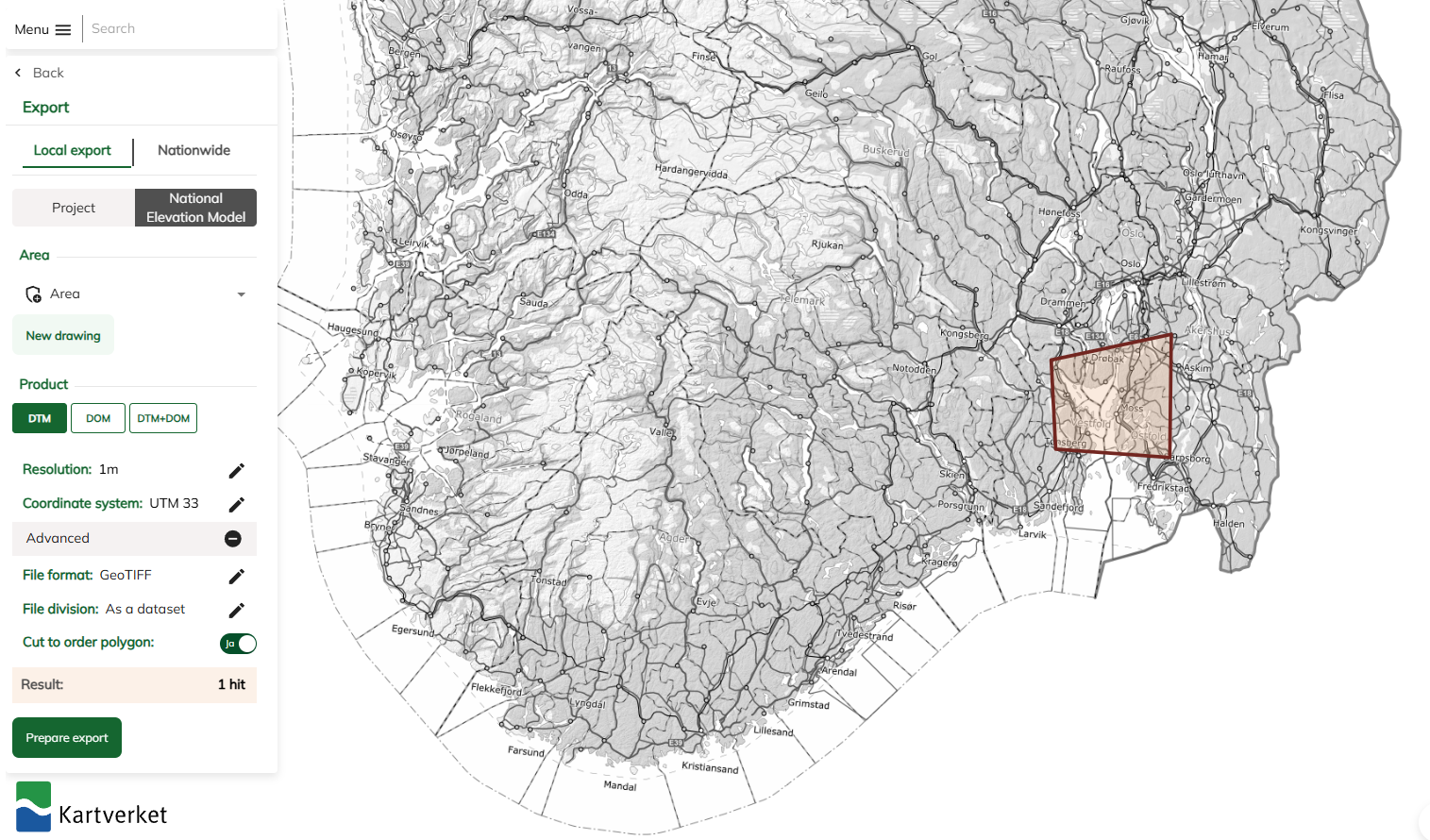

   Select Menu → Export. Go to National Elevation Model → DTM → Settings: Resolution → 1m, File Format → GeoTIFF.

   The GeoTIFF is delivered via email. You don't need any credentials.


Use Data for Terrain Model creation

After downloading the data, you can now proceed with creating a terrain model in CAD.

1. In AutoCAD or BricsCAD, go to the Plex-Earth ribbon → click on the Create Terrain dropdown box → Terrain from GeoTIFF → load the GeoTIFF downloaded.

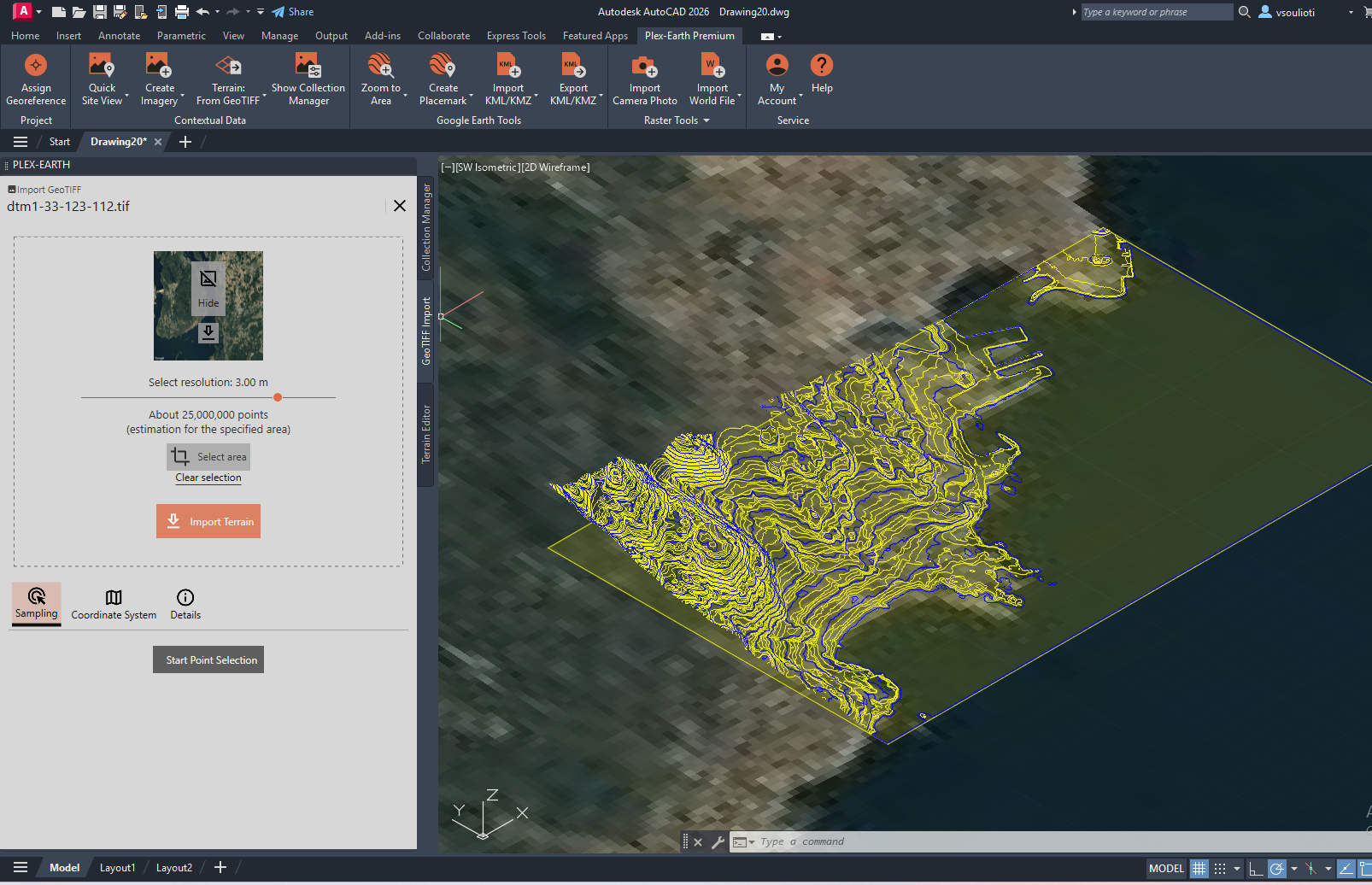

2. In the Import GeoTIFF palette, specify the area by clicking on the Select Area button, then use your mouse cursor to draw a rectangle, and select the desired resolution using the slider.

3. Click on the Import Terrain button

4. Select the Surface Type from the options available:

   • Contour Polylines

   • Points

   • TIN Mesh

   • Civil 3D Surface

   • Create Terrain Model

For the first four options, CAD objects are directly imported, ready to be used in CAD or other software.

The last option creates a Plex-Earth terrain model, which can be saved in your DWG, and with the help of Plex-Earth, customize the terrain further and also insert the data as CAD objects later on.

Check out the full guide here: Create Terrain from GeoTIFF

Here is the result!
