Poland: 1-meter DTM - Central Office of Geodesy and Cartography | Polish Government

You can use the Plex-Earth features to create terrain models from free, quality data you can find online.

About the Data

Data Provider: Central Office of Geodesy and Cartography | Polish Government

Link: iMapNext - Geoportal

Data Type: Digital Terrain Model (DTM)

Resolution: 1-meter

Terms of Use: Terms and Conditions – Geoportal.gov.pl

Data Download

1. Visit the following URL:
   https://mapy.geoportal.gov.pl/imapnext/imap/index.html?moduleId=modulPD&mapview=51.978352%2C19.400858%2C4000000s

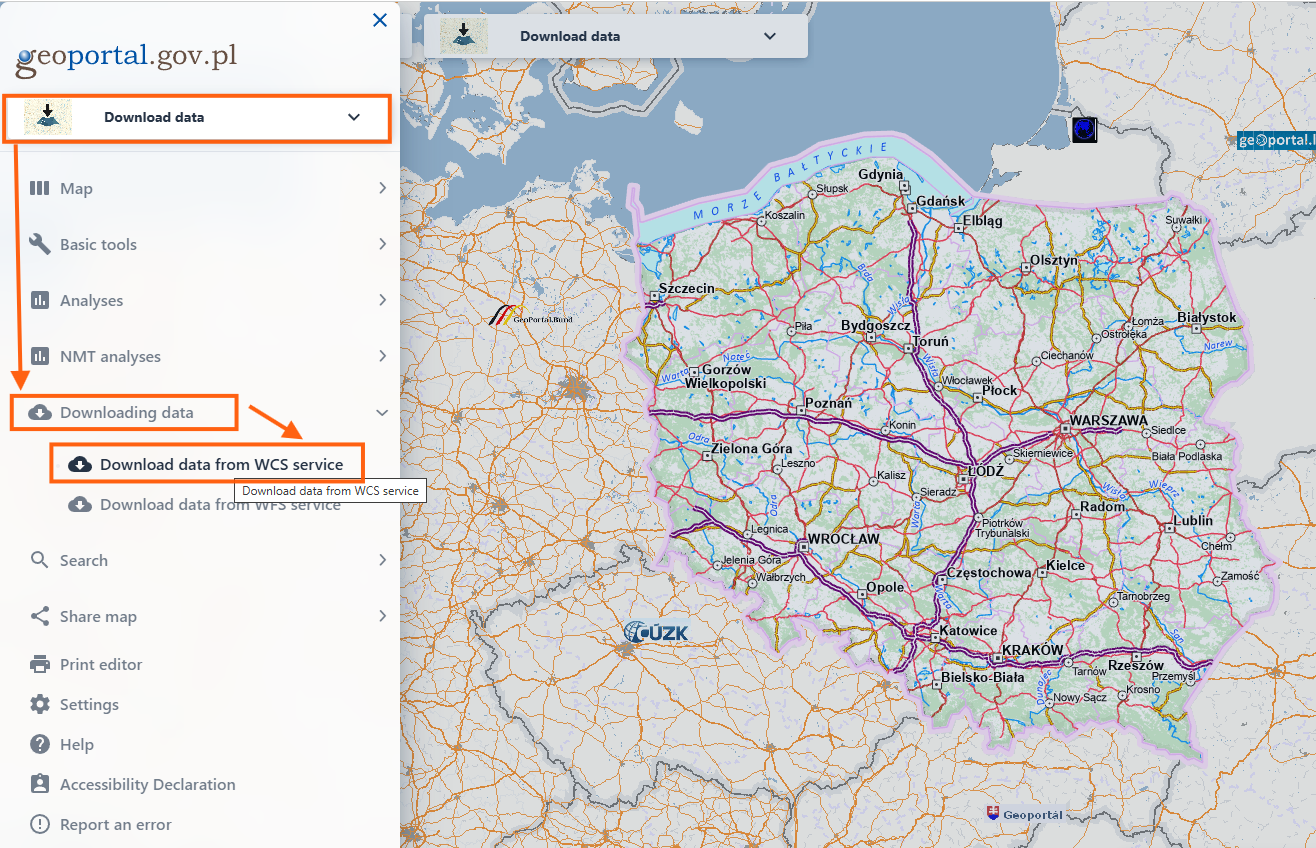

2. Go to the three lines at the top left corner and expand.
   Then go to Download Data → Download Data from WCS service.

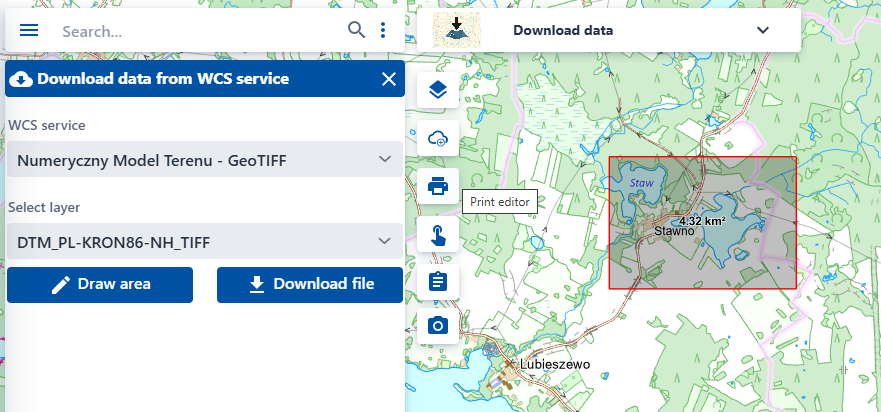

3. Select Numeryczny Model Terenu - GeoTIFF → Select Area (must be < 7km2) → Download



Use Data for Terrain Model creation

After downloading the data, you can now proceed with creating a terrain model in CAD.

1. In AutoCAD or BricsCAD, go to the Plex-Earth ribbon → click on the Create Terrain dropdown box → Terrain from GeoTIFF → load the GeoTIFF downloaded.

2. In the Import GeoTIFF palette, specify the area by clicking on the Select Area button, then use your mouse cursor to draw a rectangle, and select the desired resolution using the slider.

3. Click on the Import Terrain button

4. Select the Surface Type from the options available:

   • Contour Polylines

   • Points

   • TIN Mesh

   • Civil 3D Surface

   • Create Terrain Model

For the first four options, CAD objects are directly imported, ready to be used in CAD or other software.

The last option creates a Plex-Earth terrain model, which can be saved in your DWG, and with the help of Plex-Earth, customize the terrain further and also insert the data as CAD objects later on.

Check out the full guide here: Create Terrain from GeoTIFF

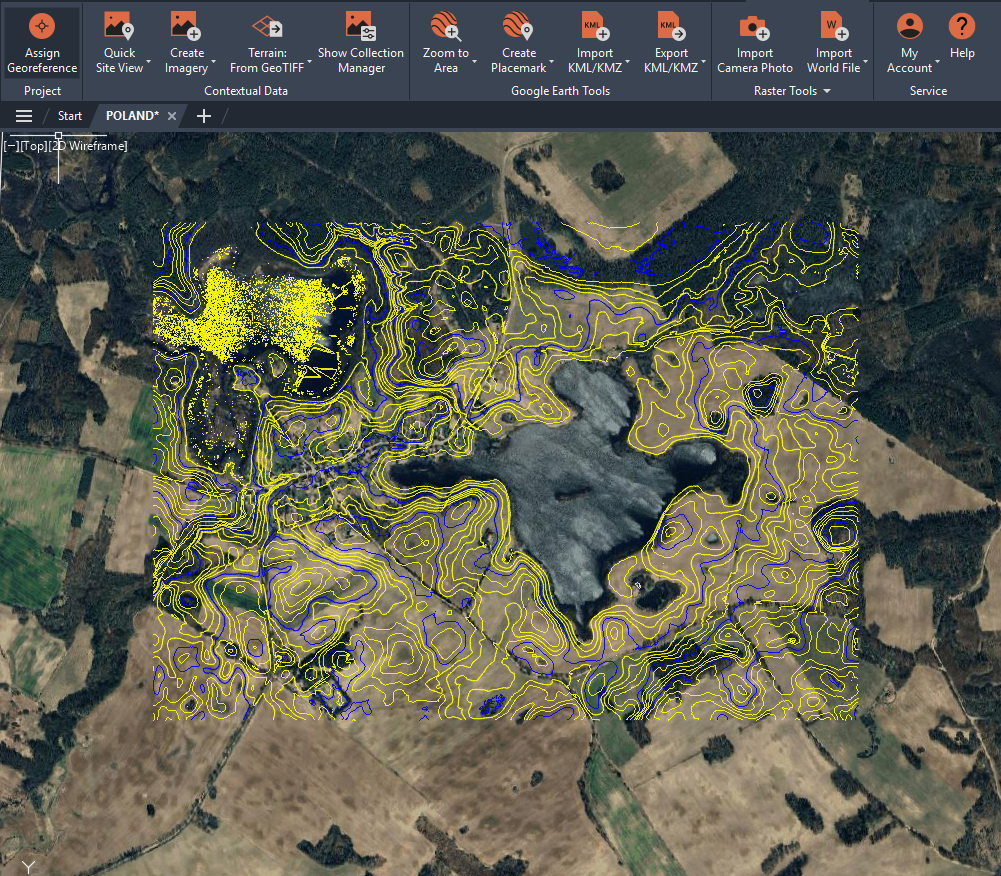

Here is the result!
