This article will guide you through the installation, system requirements, and activation process for Plex-Earth 2026, ensuring a smooth setup and usage experience.
System Requirements
Before installing Plex-Earth 2026, ensure that your system meets the requirements for optimal performance.
- Operating System: Microsoft® Windows® 11/10/8.1/8/7
- Compatibility: AutoCAD 2020-2025 (and other verticals such as Civil 3D, Architecture, Mechanical, etc.) or BricsCAD V21-V25. Find out more info here.
- Internet Connection is required
Installation Guide
Follow these steps to install Plex-Earth 2026 on your system.
Step 1: Close Any Running CAD Software
Ensure that AutoCAD or BricsCAD is closed before proceeding with the installation.

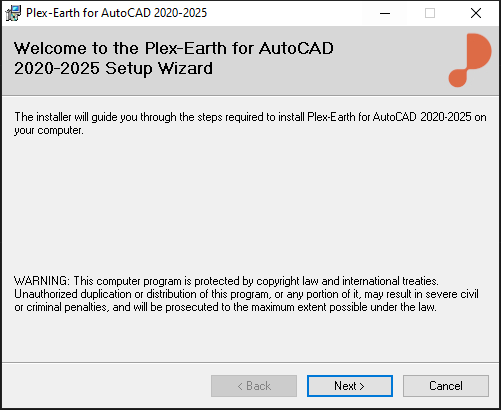

Step 2: Run the Installer
- Double-click the downloaded setup file.
- Follow the on-screen instructions to proceed with the installation.
- Click Next, review the License Agreement documentation, and wait for the process to complete.
Step 3: Complete Installation
-
Once the installation is complete, click Finish.
-
Open AutoCAD or BricsCAD.
-

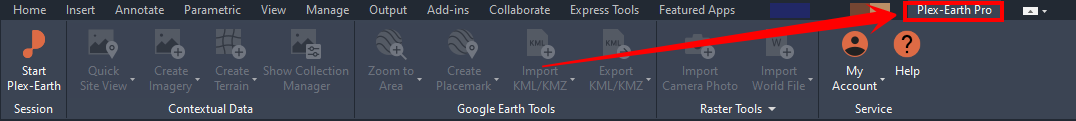

Locate the "Plex-Earth" tab on the ribbon.
Can't See the Ribbon?
If you can't find the ribbon, follow the instructions here.
Activation Guide
After installing Plex-Earth 2026, you need to activate your license or the free trial to access Plex-Earth features.
Step 1: Launch Plex-Earth
-
Open AutoCAD or BricsCAD.
-
Locate the Plex-Earth tab in the ribbon.
-
Click on Start Plex-Earth to continue.
Step 2: Activate License or Free Trial

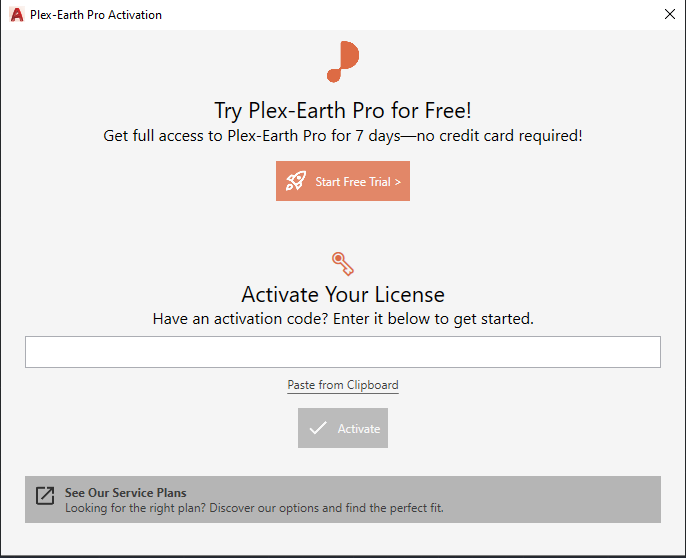

The Activation window will pop up after initialization.
-
Depending on what your license is, choose from the following:
-
For trial users, click on Start Free Trial.
-
For those who purchased a license, paste the code you received in the textbox and click on Activate.
-

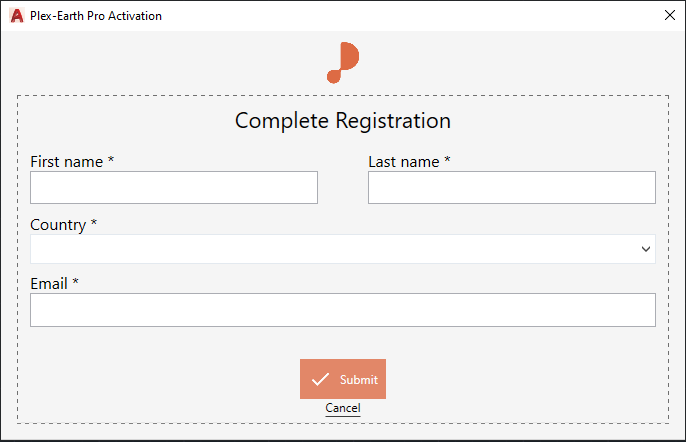

- Proceed with the one-time registration and fill in your details.

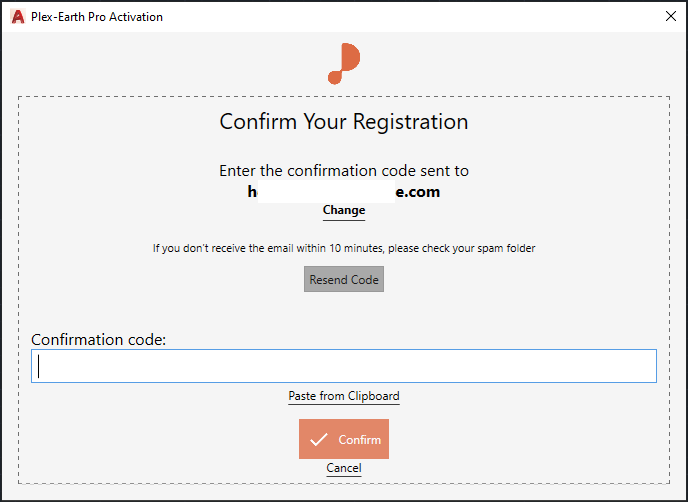

- You will then receive a confirmation code via email, which you will paste in the text box below.
- Click Finish on the next prompt.
- You might need to click on Start Plex-Earth again, then choose your default units. Once done, you are ready to explore Plex-Earth.
Ready to start your Plex-Earth 2026 journey? Check out this guide: Welcome to Plex-Earth!
Notes
If you encounter issues during installation or activation, try the following:
-
Ensure Internet Connectivity: An active internet connection is required.
-
Permissions: Make sure you have admin privileges when installing.
-
Check CAD Compatibility: Make sure you are using a supported AutoCAD or BricsCAD version. Find out which CAD versions are supported for each Plex-Earth version here.
-
Firewall/Antivirus Issues: Temporarily disable security software if installation is blocked.
-
Contact Support: If issues persist, contact us at support@plexscape.com or submit a ticket here for assistance.
Don't have Plex-Earth yet? Install a fully functional 7-day free trial of Plex-Earth now!
Compatibility includes:
AutoCAD Version: 2025, 2024 , 2023 , 2022 , 2021 , 2020
Civil 3D® Version: 2025, 2024 , 2023 , 2022 , 2021 , 2020
AutoCAD Architecture Version: 2025, 2024 , 2023 , 2022 , 2021 , 2020
BricsCAD Pro: V25, V24 , V23 , V22 , V21
